The principle and function of the iron remover

Preface: In the process of industrial production, ferromagnetic impurities mixed in materials are like hidden "time bombs", which will bring many negative effects to the production process, equipment operation and product quality. The iron remover is like a loyal "guard". With its unique working principle, it can efficiently remove these impurities and provide a solid guarantee for the smooth progress of industrial production. In-depth exploration of the principles and functions of iron removers is of great significance to improving the quality and efficiency of industrial production and reducing costs and increasing profits.

A. In-depth analysis of the working principle of iron removers

1.Principle of electromagnetic induction

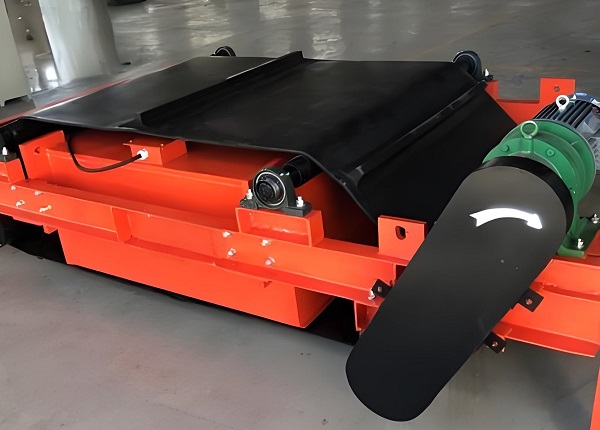

Iron remover

Basic theory of electromagnetic induction: Electromagnetic iron removers are typical equipment that operates based on the law of electromagnetic induction. The law of electromagnetic induction shows that when a part of the conductor of a closed circuit moves in a magnetic field to cut the magnetic flux lines, a current, that is, an induced current, will be generated in the conductor. In an electromagnetic iron remover, an alternating magnetic field will be generated around the coil by passing an alternating current into the excitation coil. This alternating magnetic field will excite a changing electric field in the surrounding space, and then generate an induced magnetic field that interacts with the original magnetic field.

Force analysis of ferromagnetic materials: When materials containing ferromagnetic impurities enter this alternating magnetic field area, the atomic magnetic moments inside the ferromagnetic materials will change their orientation under the action of the magnetic field, thereby generating induced magnetization. These magnetized ferromagnetic materials are like tiny magnets, which are affected by magnetic forces in the magnetic field. According to the Ampere force formula \(F = BIL\) (where \(F\) is the Ampere force, \(B\) is the magnetic induction intensity, \(I\) is the current, and \(L\) is the conductor length), the induced current in the ferromagnetic material will interact with the magnetic field to generate a force pointing to the magnetic pole, so that the ferromagnetic impurities overcome their own gravity, friction between materials and other resistances, and are adsorbed to the surface of the magnetic pole, thereby achieving separation from the material.

Adjustment mechanism of magnetic field strength: A significant advantage of electromagnetic iron removers is that their magnetic field strength can be flexibly controlled by adjusting the current passing through the excitation coil. By changing the current, the magnetic field strength generated by the excitation coil can be changed to meet the removal needs of iron impurities with different magnetic strengths in different materials. For example, for iron impurities with weak magnetism, the current can be appropriately increased to enhance the magnetic field strength to ensure that they can be effectively adsorbed.

2. Permanent magnet principle

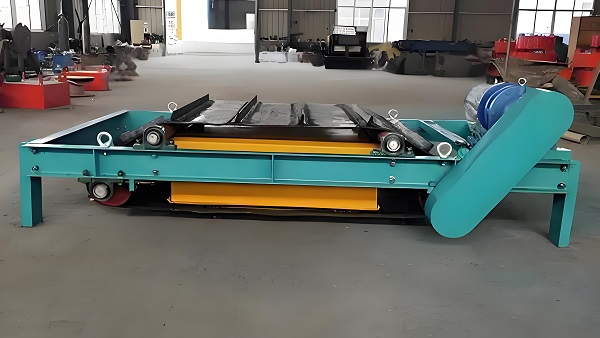

Iron remover

Characteristics of permanent magnetic materials: Permanent magnetic iron removers mainly rely on the constant magnetic field generated by permanent magnets to work. Permanent magnets are usually made of magnetic materials with high magnetic energy product and high coercive force, such as neodymium iron boron (NdFeB), ferrite, etc. Taking neodymium iron boron permanent magnets as an example, it has an extremely high magnetic energy product and can generate a strong magnetic field in a small volume. At the same time, its high coercive force enables the permanent magnet to maintain its own magnetic stability when it is disturbed by the outside world, and it is not easy to demagnetize.

Working process of permanent magnetic iron remover: When the material passes through the magnetic field area of the permanent magnetic iron remover, the ferromagnetic impurities will be attracted by the constant magnetic field generated by the permanent magnet. Since the magnetic field distribution of permanent magnets is relatively fixed, when designing permanent magnetic iron removers, it is necessary to accurately calculate and optimize the magnetic field distribution to ensure that an effective magnetic field action area is formed on the path through which the material passes, so that ferromagnetic impurities can be fully affected by the magnetic field force and adsorbed to the surface of the permanent magnet, thereby separating them from the material.

Stability and maintenance of permanent magnet magnetic field: Although permanent magnets can maintain a stable magnetic field for a long time, in actual use, it is still necessary to avoid the permanent magnet from being affected by factors that may cause demagnetization, such as high temperature and severe impact. Regular inspection and maintenance of permanent magnetic iron removers to ensure that the magnetic field performance of permanent magnets remains in the best state is crucial to ensure the iron removal effect.

B. Multi-dimensional analysis of the role of iron removers

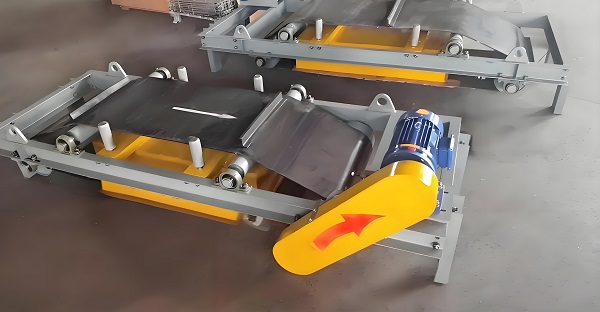

Iron remover

1. Protect production equipment

Protection of mining equipment: In mining and mineral processing operations, large equipment such as crushers and ball mills are key production tools. However, iron impurities mixed in the ore, such as discarded drill bits and steel chisels, once entering these equipment, will cause serious wear and damage to the key components of the equipment. For example, in a crusher, iron impurities may cause serious scratches and fractures on the hammer head, lining and other parts of the crusher, greatly shortening the service life of the equipment. The iron remover installed on the ore conveyor belt can remove these iron impurities in advance, effectively protect equipment such as crushers and ball mills, reduce the number of equipment repairs and the cost of replacing parts, and improve production efficiency.

Maintenance of chemical equipment: In chemical production, many reaction equipment and transportation pipelines have extremely high requirements for the purity of materials. The mixing of iron impurities may cause pipeline blockage, equipment corrosion and other problems. For example, in some fine chemical production, iron impurities may react chemically with the reaction materials, causing scaling on the inner wall of the pipeline, affecting the transportation of materials and the normal progress of the reaction. The application of iron removers in the transportation of chemical raw materials can effectively prevent iron impurities from entering the equipment and ensure the continuity and stability of chemical production.

2. Improve product quality

Quality assurance in the food industry: In the field of food production, food safety is a top priority. Any mixing of iron impurities may pose a serious threat to consumer health. Taking flour production as an example, if iron impurities are mixed into wheat during processing, it will not only affect the taste and color of the flour, but may also cause food safety problems. By installing an iron remover on the flour production line, the purity of the flour can be ensured, meeting strict food safety standards, and improving the market competitiveness of the product.

Improvement of the purity of electronic materials: In the production of electronic materials, the purity requirements of materials are almost harsh. Even trace amounts of iron impurities may have a significant impact on the performance of electronic components. For example, in the production of semiconductor materials, iron impurities may introduce impurity energy levels, affect the electrical properties of semiconductors, and cause unstable performance of electronic components. The application of iron removers in the production of electronic materials can effectively remove iron impurities, improve the purity of electronic materials, and ensure the high-quality production of electronic components.

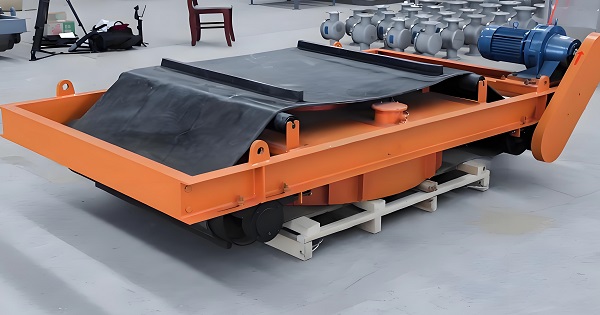

Iron remover

3. Ensure production safety

Safety protection in flammable and explosive environments: In some flammable and explosive production environments, such as coal mines, petrochemicals and other industries, sparks generated by the friction between iron impurities and equipment components may cause serious safety accidents. For example, in coal mines, sparks generated by friction between iron impurities mixed in during coal transportation and equipment components such as conveyor belts and rollers may ignite flammable and explosive gases such as gas, causing serious explosion accidents. The application of iron removers in these industries can effectively eliminate the safety hazards caused by iron impurities, ensure the safety of the production environment, and protect personnel and property.

Risk prevention and control of dust explosion environments: In some dusty production environments, such as grain processing and feed production industries, the combustible mixture formed by dust and air may cause dust explosions once it encounters a fire source. The friction sparks generated by iron impurities during equipment operation are one of the potential sources of fire for dust explosions. The use of iron removers can remove iron impurities in materials in advance, reduce the risk of dust explosions, and provide safety protection for the production environment.

PS: With its unique working mode based on the principles of electromagnetic induction and permanent magnets, iron removers play a key role in protecting equipment, improving product quality, and ensuring production safety in industrial production. With the continuous advancement of industrial technology, the principles of iron removers will continue to be optimized and innovated, and their application areas will continue to expand. In the future industrial development, iron removers will play a more important role in the production process of various industries, helping industrial production to move towards high efficiency, safety and high quality. When applying iron removers, various industries should scientifically and rationally select and configure iron removers according to their own production characteristics and needs, give full play to their maximum efficiency, and provide strong support for the sustainable development of enterprises. At the same time, continuing to pay attention to the development of iron remover technology and constantly exploring new application scenarios and optimization solutions will help further enhance the application value of iron removers in industrial production.
