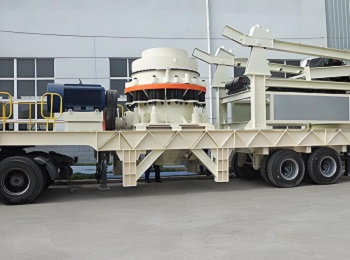

Mobile Cone Crusher Plant

Mobile Cone Crusher Plant

Mobile cone crusher plant is transferable crushing machines used to reduce the size of rocks and other materials in aggregates production and mining operations. Cone crusher has a higher output capacity with low operating and wear costs.

  • ≤50-300mmFeed Size
  • 90-265kwMotor Power
  • 30-600t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:sales@zchmachinery.com

What is Mobile Cone Crusher Plant?

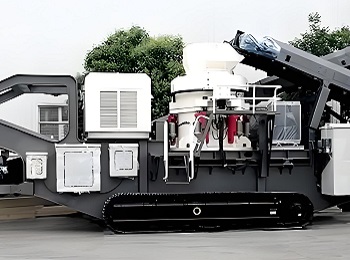

The core crushing equipment of mobile cone crushing plant is cone crusher machine. It is an integrated complete set of stone crushing unit. The cone crusher, vibrating screen, feeding and conveying equipment are all installed on a movable device. The crushing plant is compact, strong coordination, and simple structure, which can be directly driven to the site for crushing and screening operations. It can be used for coarse crushing, medium crushing, and fine crushing of various types of hard stone and ores.

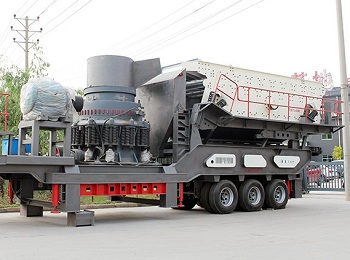

Mobile Cone Crusher Plant

How to choose Mobile Cone Crusher Plant?

Cone crushers include models of spring cone crushers, Simmons cone crushers, hydraulic cone crushers and DG cone crushers, etc. According to use purpose, it is divided into three types: coarse crushing, medium crushing and fine crushing. The mobile cone crusher can also be made into different crushing plant accordingly. The choice of mobile cone crusher plant should be based on the actual situation,site size grain size requirements, capacity and other factors to choose the appropriate model.

According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile cone crusher plant, the user must have a detailed understanding of the humidity, hardness, physical and chemical properties of the materials to be crushed.

According to finished granularity requirement. Because each user has different requirements for product particle size, the selection of equipment model will also be affected by it. If users want fine-grained materials, they can choose short-head cone crusher; if they want coarse-grained materials, they can choose standard or medium-sized cone crusher. In short, users must have a clear understanding of the product particle size requirements they want to achieve.

Since the prices of each type of mobile cone crusher are different, users must consider their own production conditions when purchasing a cone crusher, and strive to obtain large returns with a small investment.

Get Price List
  • High Quality

    ncorporated design. It has high standard requirements on steel structure and high strength wear-resistance parts to crush even hardest rocks(400Mpa).

  • Customized Design

    Truck mounted and easy to move. With support legs on truck,quick to set-up. The supporting legs height can be adjustable, adopt hydraulic controling parts.

  • Good Performance

    Advanced liner technology for easy wear parts replacement.Easy and Simple to maintain and operate.

Product features

Through control system, maintenance, setting modifications, production follow-up and data extraction etc, all parameters can be set up close to the crusher or remotely from the control room.

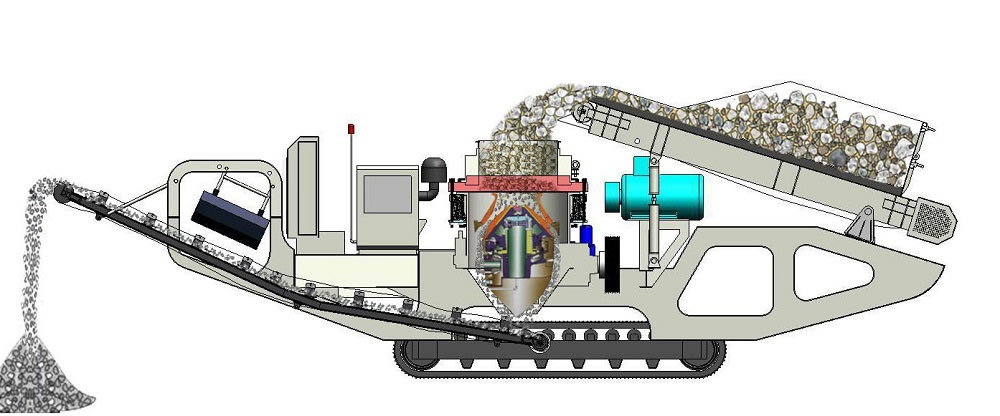

Working principle

How does mobile cone cruhser plant work? In the mining and quarry industry, mobile stone crusher plant is composed of primary crushing and screening station and secondary one, belt conveyor, etc. Every crushing station is an independent working unit, they can respectively assume their different responsibility, and the belt conveyor is responsible for material transmitting and piling up between each crushing station. Mobile cone crusher plant is usually as secondary crushing machine to process rocks or ores from priamry jaw crusher plant. After cone crusher machine crushing, hard crushed stone is fed to vibrating screen to get different size material, 0-5mm, 5-10mm, 10-20mm, 20-40mm or some other required size. Vibrating screen is designed to be same level with cone crusher. The oversized material from first layer could be fed to cone crusher directly to crush again. Other required size is sent to stock ground by belt conveyor. Compared to stationary stone crusher plant, iIt has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

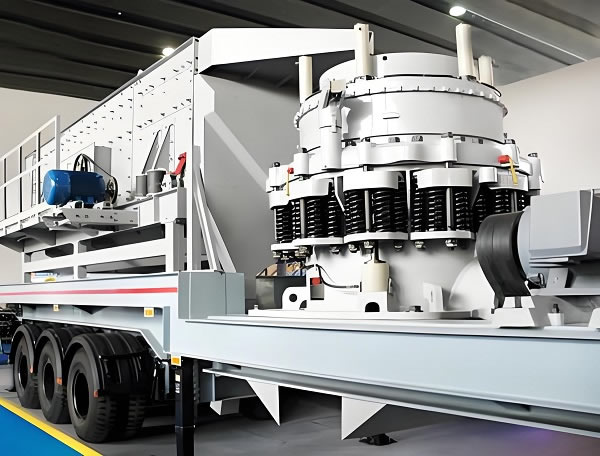

Mobile Cone Crusher Plant

Specification

ModelSMC120SMHSSMC180SMHSSMC180SMHSMC250SMHSSMC250SMH
Transport size
Length(mm)1120011800100001230010816
Width(mm)27432743248029002743
Height(mm)42004200416042004160
Alex weight(kg)1550016300143003110022900
King pin weight(kg)129001420081001760012800
Cone crusher
ModelSMH120SMC180SMC180SMC250SMC250
Max Feed opening(mm)160180180240240
setting range(mm)22-3222-3222-3226-5126-51
Vibrating screen
Model3YK15454YK1548
Belt conveyor
ModelB800X8B1000X8B1000X8

*The output will vary according to different materials, feed particle size and other factors.
