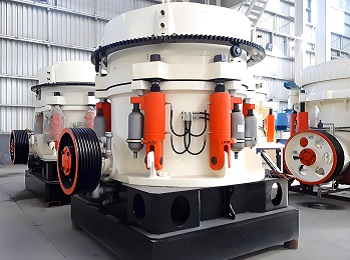

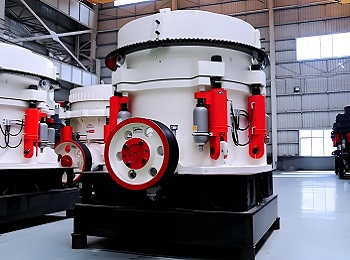

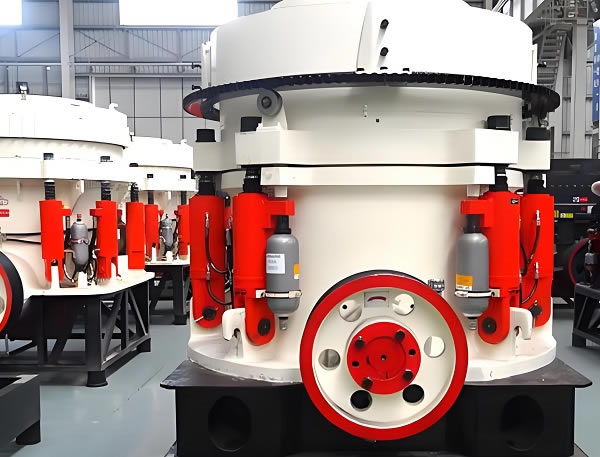

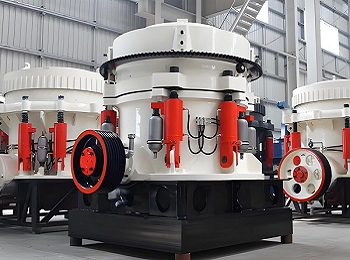

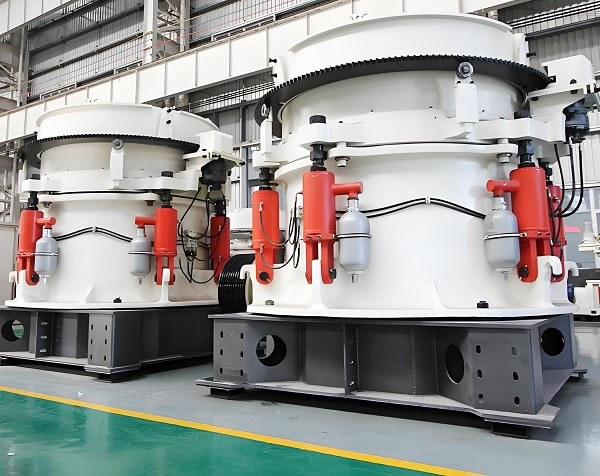

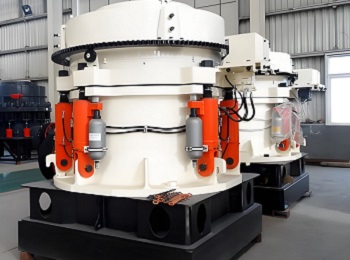

HPC Cone Crusher

Multi-cylinder hydraulic cone crusher are characterized by robust design and high performance with integrated crushing speed, stroke and crushing chamber perfectly. It is ideal stone crusher in aggregates production to meet coarse and fine crushing requir

≤240mmFeed Size
75-375KWMotor Power
45-600t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is HPC Cone Crusher?

Hydraulic cone crusher is a medium and fine crushing machine. It adopts hydraulic system to adjust the discharge opening and is used to protect the cone crusher from overload. The shape design of cone crushing chamber is more scientific, and the hydraulic and lubrication systems are double-safety controlled. HP cone crusher can be widely used in mines and gravel aggregate industries, suitable for crushing various materials with medium hardness or above. Such as iron ore, non-ferrous metals, granite, limestone, quartz, sandstone, river pebbles and other ores and rocks.

How to choose HPC Cone Crusher?

1. The multi-cylinder hydraulic cone crusher is equipped with a hydraulic motor, which can automatically adjust the mine opening, and automatically remove the fixed cone and the movable cone.

2. If the multi-cylinder hydraulic cone crusher stops under load, the hydraulic cavity cleaning system can quickly clean the crushing cavity, greatly reducing the downtime.

3. The special thin oil lubrication system design of the multi-cylinder hydraulic cone crusher improves the lubrication performance of the equipment and prolongs the service life of the equipment.

4. The special crushing chamber designed by the principle of intergranular lamination and the matching speed can realize selective crushing of materials, and the crushing particle size is uniform.

Get Price List

High Quality

Laminated crushing brings good product shape. It improves the quality of finished product and decreases the cost of equipment and whole system.
Customized Design

Higher crushing efficiency with optimized crushing chamber. Several standard crushing chambers are available for each model.
Good Performance

The cylinder with hydraulic system provides overload and non-broken material protection. It saves the time of maintenance and decreases the operation cost.

Product features

Integrated hydraulic lubricating system with compact structure, small volume, saving installation space, reducing fuel consumption.

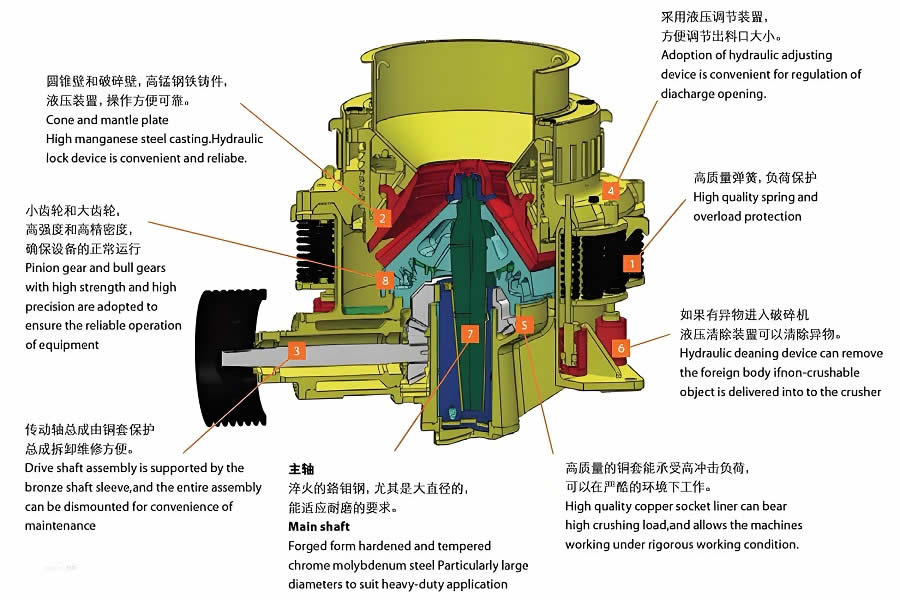

Working principle

Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner.

The whole working process of HPC multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, squeezing or compressing the materials continuously. The material is crushed from all directions, crushed and grinded according to their own grain, which formed the high compressive strength building aggregates. The materials are small enough to fall through the narrow opening at the bottom of the crusher.

Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.

Specification

Model	Cavity	Standard type		Shorthead type		Capacity (t/h)	Motor Power (kw)
Model	Cavity	Feeder opening size(mm)	Outlet setting size(mm)	Feeder opening size(mm)	Outlet setting size(mm)	Capacity (t/h)	Motor Power (kw)
HP200	Coarse	185	19	76	10	145-250	132-200
	Medium	125	17	54	6	135-235
	Fine	95	13	23	6	115-220
	UltrafineFine	75	10	10	5	90-190
HP300	Coarse	210	20	75	10	190-380	180-250
	Medium	150	15	50	8	175-320
	Fine	105	10	20	6	145-280
	UltrafineFine	80	10	20	6	110-240
HP400	Coarse	250	25	90	10	285-560	280-355
	Medium	195	20	50	8	250-490
	Fine	110	14	40	6	180-345
	UltrafineFine	90	10	30	6	135-320
HP500	Coarse	285	25	90	13	400-790	355-450
	Medium	200	20	55	10	335-610
	Fine	133	16	40	8	280-460
	UltrafineFine	95	13	35	6	180-435
