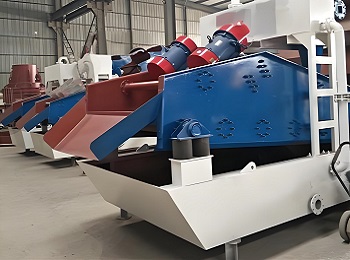

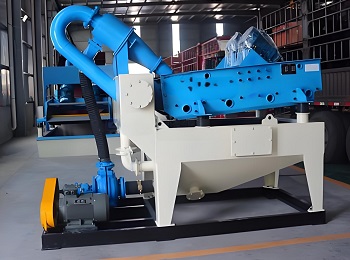

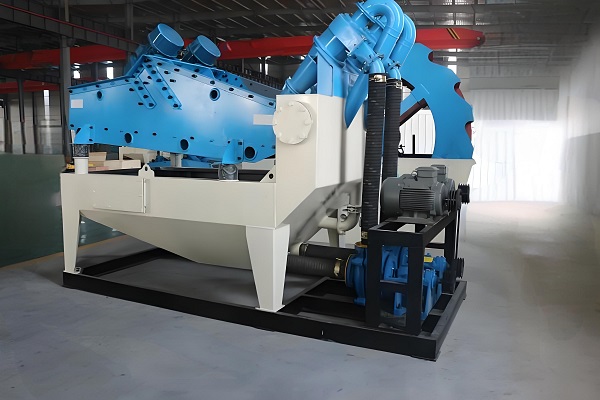

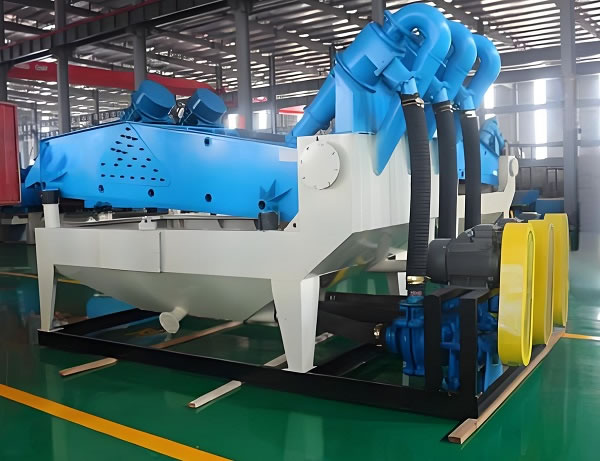

Sand Recycling Machine

Fine sand recycling machine, also known as fine sand collection machine, fine sand extraction machine, fine sand recovery machine etc.It could be used for dewatering, removing and removing mud materials.

50-300 m3/hFeed Size
1.5-6KWMotor Power
50-300 m3/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Sand Recycling Machine?

The main function of the fine sand recovery machine is to clean, dehydrate and classify the sand and gravel. It can well recover a large amount of fine sand lost by the sand washing machine in the traditional sand making industry. Not only improve economic benefits, it also reduces the treatment cost of tailings, and avoid damaging environment because of fine sand loss will cause pollution.

How to choose Sand Recycling Machine?

The fine sand recycling machine can effectively reduce the loss of fine sand and the content of stone powder in the tail water, which solves the problem of high fineness mold of finished sand and low content of stone powder in the artificial aggregate processing system.

Fine particles are fully recovered, reducing the workload of cleaning cost of the sedimentation tank.

The vibrating screen produce by Zhongcheng machinery adopts polyurethane screen with longer life than other types of screen, and will not block holes.

Get Price List

High Quality

Effectively reduce the fine sand losing quantity.
Customized Design

Reduce the amount of fine material piling up, can be directly transported to supply market.
Good Performance

The vibrating screen is polyurethane screen cloth, which has longer life and smoothly finishes the work of condensing slime and clearing the liquid.

Product features

Making customerized machine according to different demands.

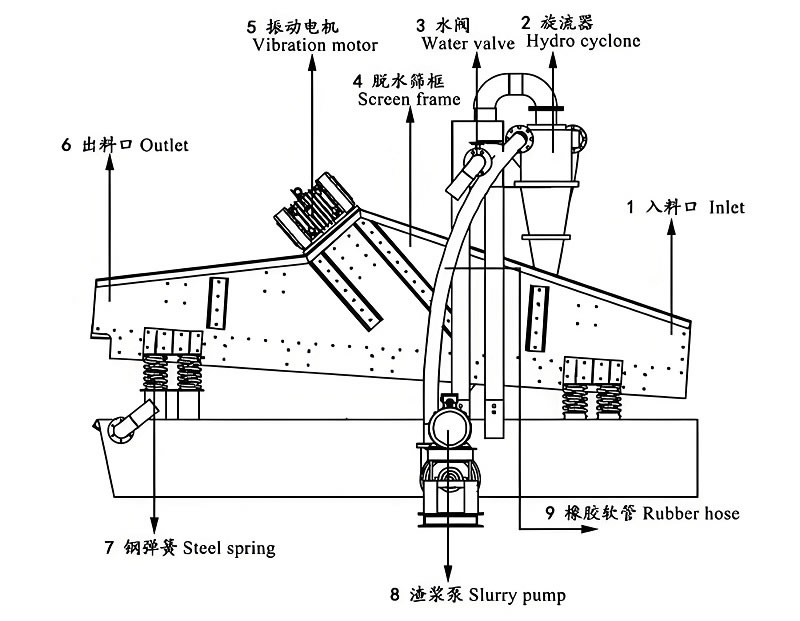

Working principle

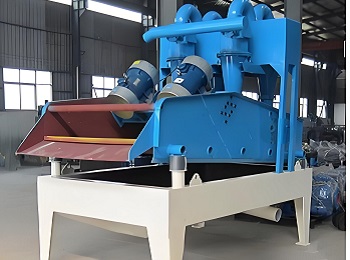

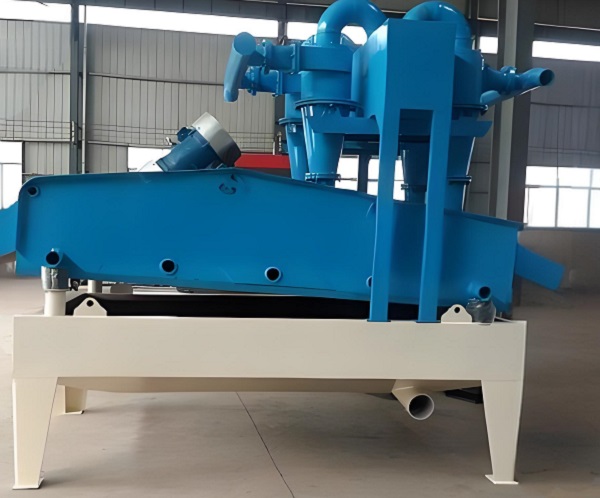

The pump sends the sand and water mixture to hydrocyclone, the fine sand with eccentricity is sent to vibrating screen. The fine sand and water are effectively separated after dehydration, and little fine sand and mud go back to washing trough. When the liquid surface of the washing trough is high, the fine sand discharges from output opening. The linear vibrating screen can recover material with concentration 70%-85%. Adjusting fineness modulus can be realized by changing pump rotation speed, changing pulp consistency, adjusting overflow water and changing sand sinking mouth. By the process above, the fine sand recovery system can finish three functions, cleaning, dehydration and grading.

Specification

Model	Pump Power (kw)	Separator Spec (mm)	Dewatering Screen		Capacity (m³/h)
Model	Pump Power (kw)	Separator Spec (mm)	Spec(mm)	Power (kw)	Capacity (m³/h)
FX250	11	250	800×2000	2×0.75	30-60
FX300	15	300	800×2000	2×0.75	60-100
FX350	18.5	350	1000×2000	2×1.5	70-130
FX550	22	250x2	1200×3000	2×2.2	100-220
FX650	30	300x2	1500×3000	2×3	120-272
FX750	37	350x2	1500×3000	2×3	180-350
FX900	55	300x3	1800×3600	2×4	450-650
