Product Center / Stone Crusher Machine / CJ Jaw Crusher

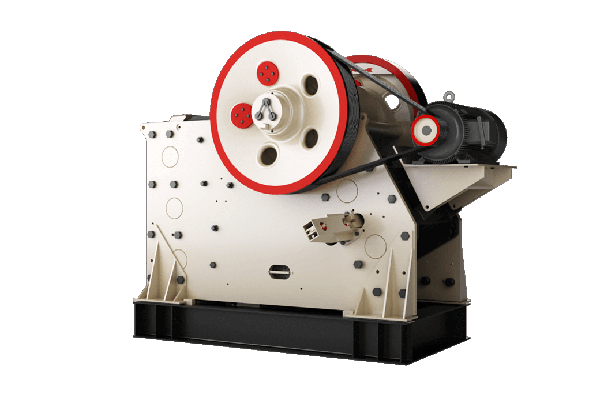

CJ Jaw Crusher

CJ series jaw crushers are widely used in the mining, quarrying, and cement industry. It has deep symmetrical crushing chamber and optimized nip angle maximizing size reduction and production capacity.

400-780mmFeed Size
90-160KWMotor Power
60-500t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is CJ Jaw Crusher?

CJ Series Jaw crusher is an excellent performance jaw crusher, which is developed by Zhongcheng Machinery Co., Ltd. according to customer market needs. Compared with the traditional jaw crusher, it has great improvement in movement parameters, structure and adjusting methods, etc. CJ Series Jaw Crusher occupies a small space and has bigger crushing ratio, at the same time its operation more stable. It has more advantages in transportation, installation, maintenance and adjustment. Especially it is suitable for fixed crushing production line and mobile crushing station.

How to choose CJ Jaw Crusher?

1.Easy to install: Compact modular structure, easy to replace existing crushers, it can be transported to the site separately.

2.Reliability: riveted and bolted, solderless frame construction, outstanding fatigue strength, excellent casting technology, top quality components.

3.High yield: Excellent feeding capacity, large angle crushing chamber to ensure the best bite force, strong movement to ensure efficient crushing pressure reliable movement, high operating rate.

Get Price List

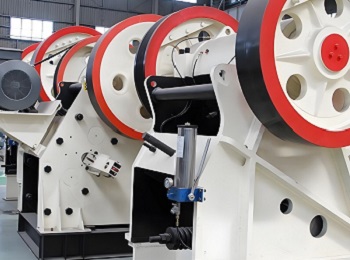

High Quality

1.Innovative modular and welded frame structure makes jaw crusher the greater fatigue resistance and the better reliability.

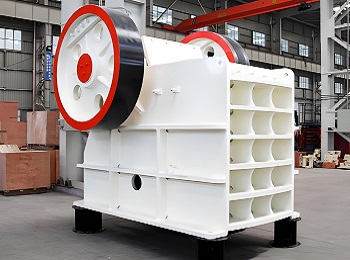

Customized Design

2.High crushing ratio and quality wear resistant parts, which provides easier production process for customers.

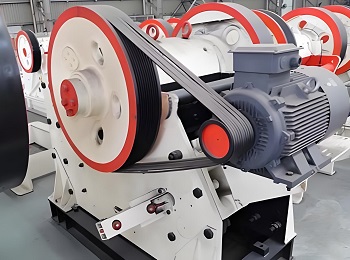

Good Performance

3.With the excellent motion parameters, the design of the main components is more precise, and the crushing effect is better.

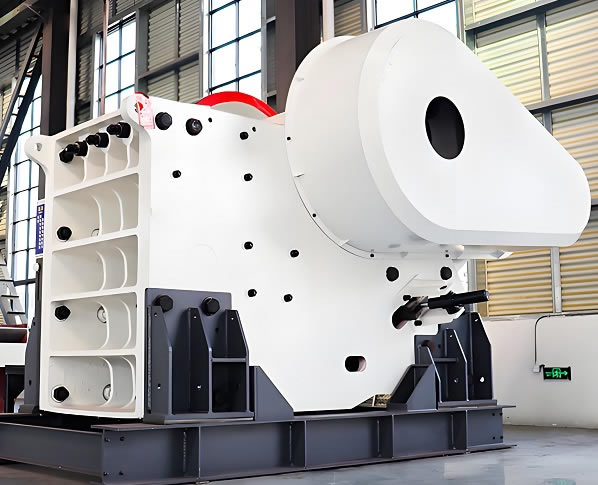

Product features

The bearing specifications are larger, the bearing capacity is higher, the crushing force is larger, and the waste generated from the crushing process is less.

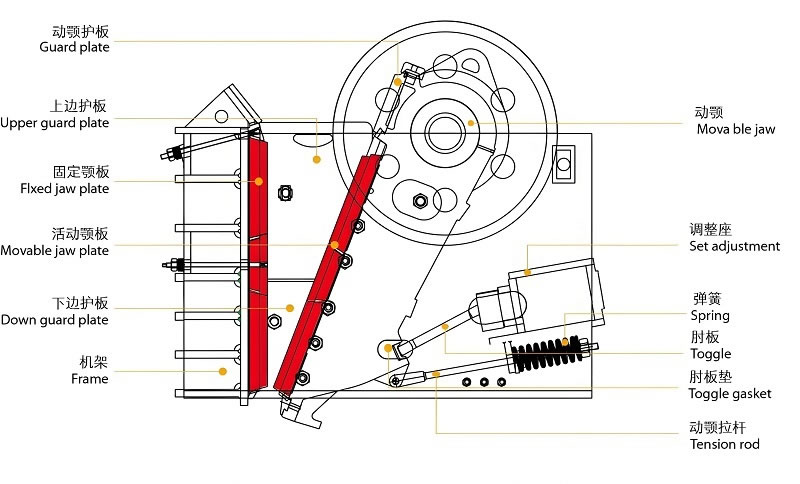

Working principle

A Jaw Crusher uses compressive force to break hard stone material.

There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom. The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.

As the moving jaw moves away from the fixed jaw, the crushed material is discharged from discharge opening at the bottom. The required size is determined by the gap between the jaws.

Specification

Model	Feeder Opening Size(mm)	Max. Feeding Size(mm)	Discharging Opening Size(mm)	Capacity (t/h)	Motor Power (kw)	Eccentric shaft speed (r/min)
CJ96	580X930	480	60-170	100-230	90	290
CJ106	700X1060	580	70-180	130-450	110	280
CJ116	760X1150	680	70-190	260-780	160	260
CJ120	870X1200	780	165-320	450-1200	220	230
