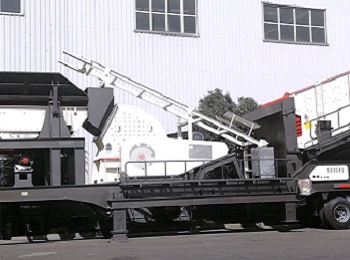

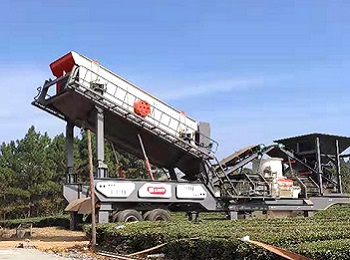

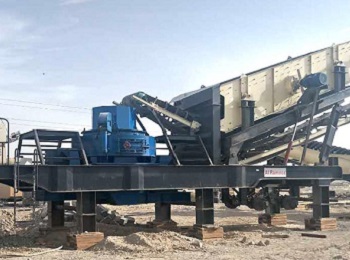

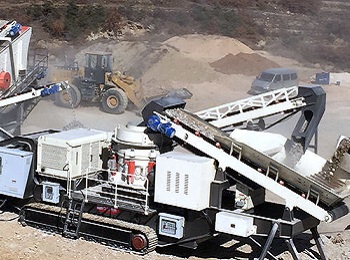

Mobile Sand making machine is portable type VSI crusher and screening plant. It is indispensable machine for artificial sand making. Mobile sand making plant is ideal for tertiary crushing and screening applications in quarrying and mining.
The material is pre-selected by the feeder, produced by the VSI sand making machine ,separated by vibrating screen ,unqualified size gravels turn back to crusher .That forms a closed-circle system to realize the material circle processing , which can effectively save the sand making procdures. The finished product is conveyed by the conveyor ,it ensures the whole production line continuously processing.
Applicable materials: artificial sand made from river pebbles, mountain stones (limestone, granite, basalt, diabase, andesite, etc.), ore tailings and stone chips.

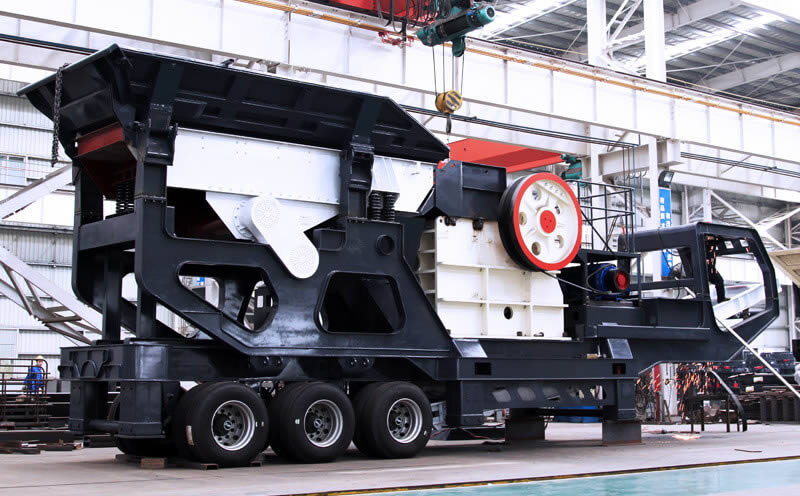

All components of the mobile sand making machine are mounted on the vehicle, which can not only eliminate the complicated installation of separated components on site, reduce the consumption of materials and working hours, but also greatly improve the flexibility of equipment transfer.
Powerful crushing performance.
Flexible configuration and great adaptability.
Strong, durable, reliable, large loading capacity.
Automatic lubrication system.

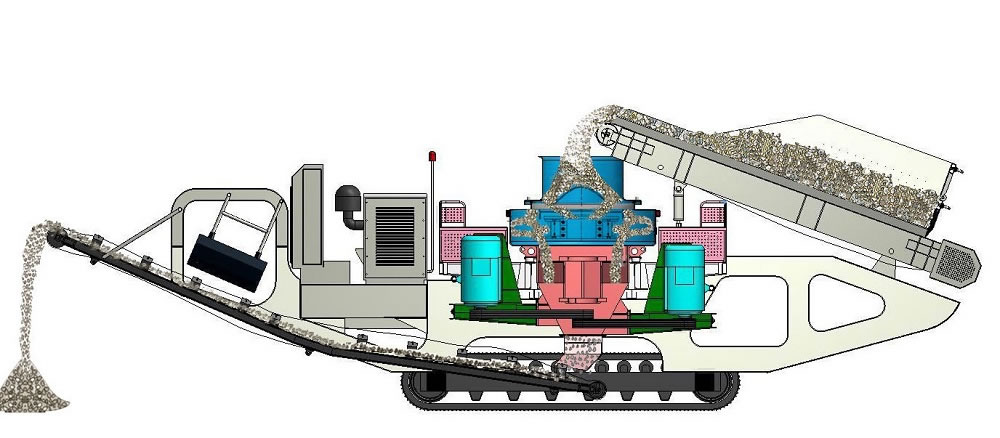

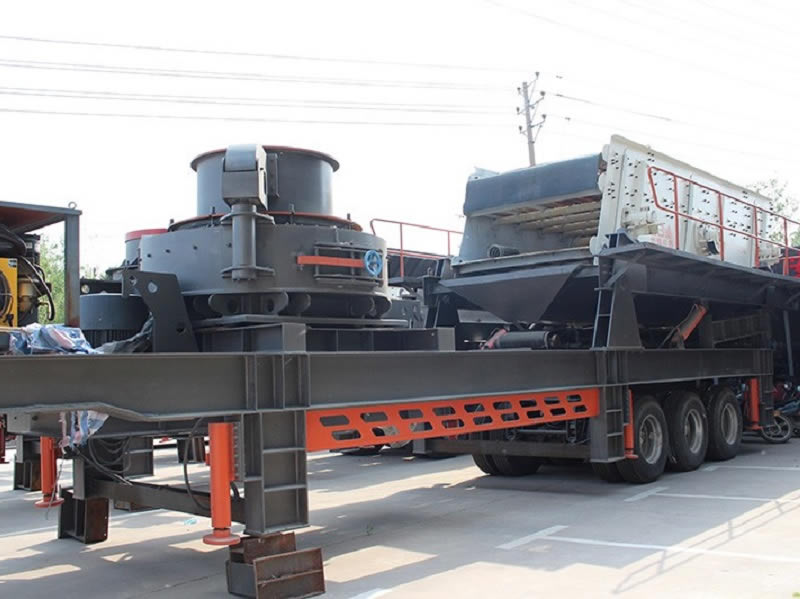

Mobile sand making machine is consist of hopper, VSI sand maker, vibrating screen,conveyor belt, and truck mounted frame foundation. The power supplier can be electricity or diesel generator group set, that reducing the cumbersome process of installation and labor consumption, and that truly provide customers with convenient, efficient, low-cost crushing equipment. When mobile VIS crushing plant works, the raw material feed through upper inlet into rotating impeller. Due to centrifugal force, the material will collide with surrounding ones and broken. The final product will come out from beneath outlet. The screen grates gaps will control size of final product .
Model | PP5000VSI | PP5000VSI3S | PP6000VSI | PP6000VSI2S | PP7000VSI | PP7000VSIS |
Transport size | ||||||
Length(mm) | 9800 | 11280 | 11500 | 15470 | 1100 | 15420 |
Width(mm) | 2490 | 2780 | ||||
Height(mm) | 4200 | 2500 | 3850 | 4180 | 3820 | 4150 |
Alex weight(kg) | 14600 | 19200 | 14000 | 22300 | 15000 | 21100 |
King pin weight(kg) | 7000 | 8800 | 6000 | 10300 | 8200 | 11500 |
Vertical shaft impact crusher | ||||||
Model | VI-5000 | VI-5000 | VI-6000 | VI-6000 | VI-7000 | VI-7000 |
Max input size(mm) | 65(80) | 65(80) | 70(100) | |||
through-put capacity(t/h) | 80-150 | 80-150 | 120-250 | 120-250 | 180-350 | 180-350 |
Vibrating screen | ||||||
Model | 3YK1545 | 2YK1860 | YK2160 | |||
Belt conveyor | ||||||
Model | B650X6.5m | B800X7.2m | B800X6.7m | B1000X8.6m | B1000X6.4m | B1000X8.6m |
Alex number | 1 | 2 | 2 | 2 | 2 | 2 |
*The output will vary according to different materials, feed particle size and other factors.
