About Limestone grinding mill plant

Limestone is a kind of nonmetallic minerals composed mainly of calcium carbonate (CaCO3). It is usually in the form of calcite or aragonite. Limestone has numerous uses: as a building material, an essential component of concrete (Portland cement), as aggregate for the base of roads, as white pigment or filler in products such as toothpaste or paints, as a chemical feedstock for the production of lime, as a soil conditioner, and as a popular decorative addition to rock gardens.

The complete limestone grinding plant are composed four process - crushing, grinding, powder selection and packaging.

1. Crushing. It is to break large into appropriate granularity to meet feeding requirements of raymond mill machine.

2. Grinding. It is main porcess to produce limestone powder products, according to different fineness requirements.

3. Powder selection. It is to sort out qualified limestone powder. Collect the coarse particle to return to grind again.

4. Packaging. Qualified lime powder is generally stored in storage silos or packaged before it can be sold as commodities.

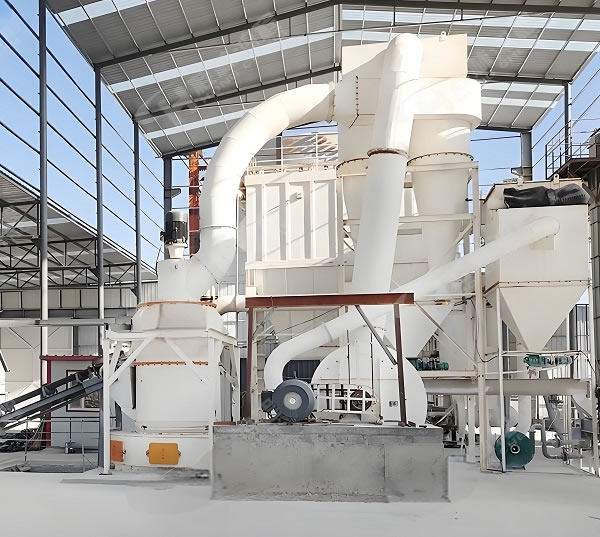

Limestone grinding mill plant

Solution Details Display

According to the different needs of users, the grinding machine host can be equipped with Raymond mill, high-pressure suspension roller mill, three ring medium speed mill, MFW European mill and other equipment.
Equipment listJaw crusher, Bucket elevator,magnetic vibrating feeder, raymond mill machine, pulse dust collector, blower and motor, packaging system(optional)
Raw materialsLimestone,calcium carbonate, calcite etc
Mohz hardness2-3
Feeding size<25mm
Capacity2-30tph (Zhongcheng provides professional solution for different capacity requirement)
Output Size100-425mesh
ApplicationCement, steel, ceramic, chemical power, construction industries and etc.

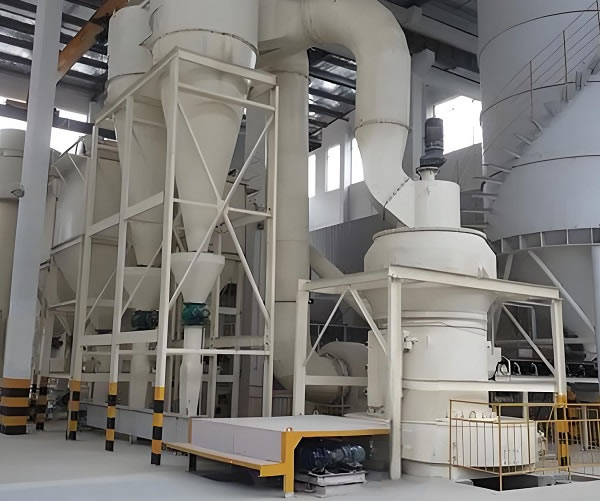

Limestone grinding mill plant
Limestone grinding mill plant Features

1. Reasonable layout, small area. Compact structure design, vertical structure, small area. It has own production system.

2. Energy saving, stability and high efficiency. The production line has high output and stable operation. It adopts isolated cyclone powder collector, which can effectively improve the efficiency and precision of powder selection.

3. Simple operation and maintenance. Important parts are made of high quality steel, the whole machine durable and reliable. Superior performance, stable air volume and pressure, low failure rate, more convenient installation and debugging.

4. Green environmental protection, no dust spillover. Using negative pressure system, no dust pollution. Feeding system, grinding system and finished product conveying system are equipped with efficient dust removal device to achieve dust-free operation.
