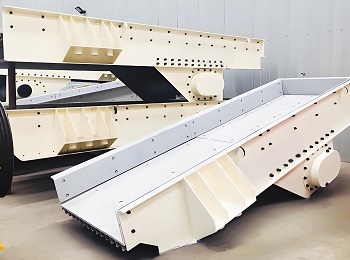

Vibrating Feeder

Vibrating feeder is used to feed block and granular materials uniformly, regularly and continuously from the storage bin in to stone crushers. Also it could separate the raw materials primarily by grate plate.

≤650mmFeed Size
5.5-30KWMotor Power
30–600 t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Vibrating Feeder?

Vibrating feeder is used to feed rocks to primary crushing equipment continuously and evenly in the sand and gravel production line to avoid blockage of the crusher receiving port. In the production process, it can feed the lumpy and granular materials from the storage bin to the receiving device continuously, evenly and regularly, thus preventing the receiving device from dying due to uneven feeding and prolonging the service life of the equipment.Vibrating feeder is widely used in crushing and screening operations in metallurgy, coal mining, building materials, chemical industry, abrasives, mineral processing and other industries.

How to choose Vibrating Feeder?

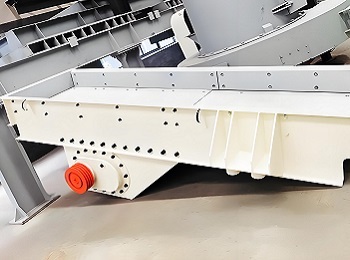

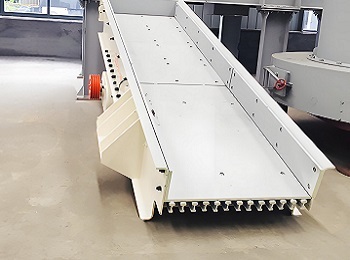

1. Vibrating feeders have steel plate structure and grate structure. The vibrating feeder with steel plate structure feeds all materials evenly into the crushing machine. It is mostly used in sand and gravel production plant.

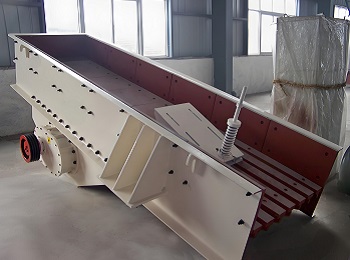

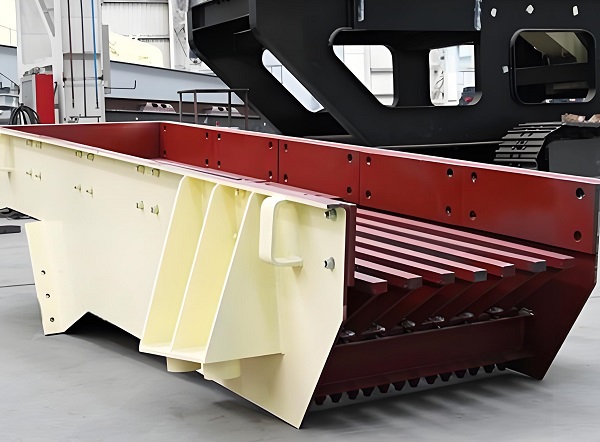

2. Grate type vibrating feeder has a grading function and adjustable gap on the feeding surface near the discharge end, so it can separate the soil and fine-grained materials while feeding. This will improve primary crusher’s crushing efficiency.

3. Small vibrating feeder is used to uniformly, continuously or quantitatively feed blocky, granular and powdery materials from the storage bin or other storage equipment to the receiving equipment. It is suitable for automatic batching, quantitative packaging and automatic control.

4. The vibrating feeder produced by Zhongcheng Machinery has features of stable vibration, reliable operation, low noise, low energy consumption, convenient equipment adjustment and installation. It can adopt a closed structure body to prevent dust pollution.

Get Price List

High Quality

Stable amplitude, reliable operation, and strong adaptability to a variety of materials.
Customized Design

Special grid design can prevent material blockage and adjustable grid gap.
Good Performance

Use inertial vibrator as the vibration source, and there are no moving part and few wearing parts.

Product features

Have low noise and can help to improve working environment.

Working principle

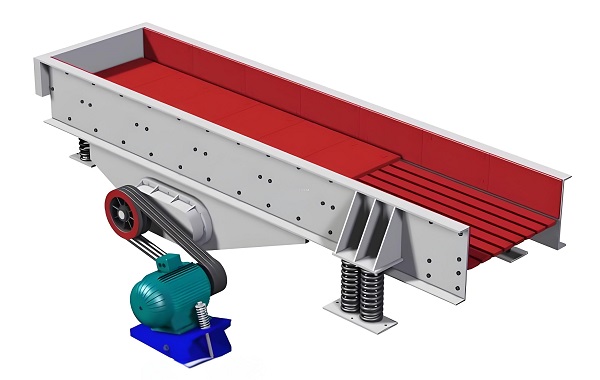

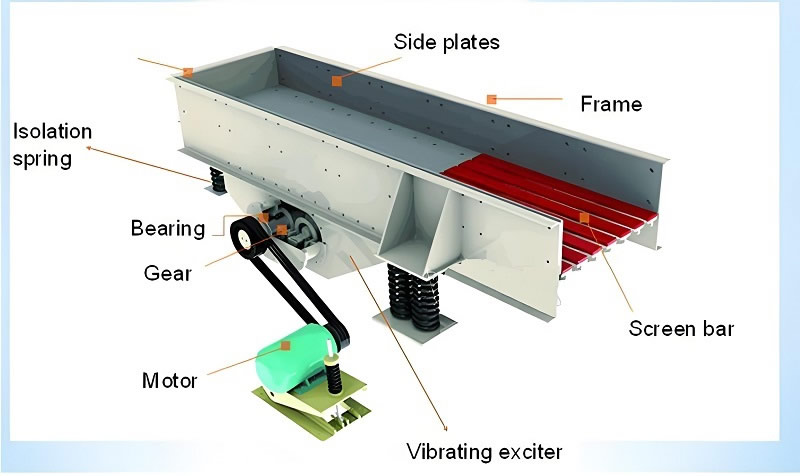

Vibrating feeder is made of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator consists two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. By drive of the motor, the two eccentric shafts start rotating to generate a linear huge power which forces the feeder to vibrate back and forth. Through the vibration, The materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller material will fall down, avoiding the further crushing, so screening purpose is reached.

Specification

Model	Trough size(mm)	Max feed size(mm)	Capacity (t/h)	Motor Power (kw)
ZSW-650*2500	650*2500	560	50-80	5.5
ZSW-850*3000	850*3000	780	80-120	7.5
ZSW-960*3800	950*3800	820	120-210	11
ZSW-1100*4200	1100*4200	1000	200-430	15
ZSW-1100*4900	1100*4900	1000	280-500	15
ZSW-1300*4900	1300*4900	1100	450-600	22
ZSW-1500*6000	1500*6000	1280	550-1200	30
ZSW-1800*6000	1800*6000	1350	600-1200	37
