Mobile Jaw Crusher Plant

Mobile Jaw Crusher Plant

Mobile jaw crusher is heavy duty crushers to crushing hard stone in mining,mineral,construction waste recycling fields. Mobile stone crusher integrates feeder, jaw crusher, belt conveyor, control system to solve site infrastructure effectively.

  • ≤750mmFeed Size
  • 30-150 kwMotor Power
  • 10-450 t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:sales@zchmachinery.com

What is Mobile Jaw Crusher Plant?

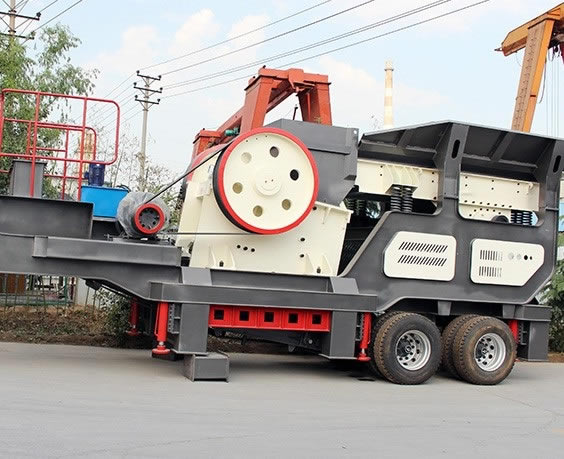

The tire-type mobile jaw crusher plant is composed of a solid frame, jaw crusher, feeder, conveyor, motor and control box, etc. With high efficiency and larger crushing ratio, it saves space and eliminates the obstacles brought by crushing site and environment to customers' crushing operation. The mobile primary jaw crusher is used for crushing various stones and ores, such as limestone, quartz, iron ore, copper ore, marble, pebbles, as well as for crushing waste and road material, brick or concrete. Mobile stone crusher plant is used both independently and in combination with other crushers, both with impact or cone crushers, which makes it possible to obtain finer fractions of cubic crushed stone and artificial sand.

Mobile Jaw Crusher Plant

How to choose Mobile Jaw Crusher Plant?

1.When choosing a mobile crusher machine, it should meet the processing capacity requirements of the production line, so as to avoid the stacking problem caused by excess raw materials, and also improve efficiency. At the same time, the characteristics of the material should also be considered. If the particle size of the input material is uneven, a feeder with a pre-screening function can be selected; if the material has high moisture content and high hardness, it will increase the difficulty of crushing, Therefore, mobile crushing machine with theoretical capacity higher than that of production line should be selected.

2. Consider the compatibility with existing devices. For the quarry, the production line equipment mainly includes: electric shovel, truck and other feeding equipment, as well as sand making machine and other process equipment, and the production capacity of the mobile crusher should match it, in order to avoid the waste of stone. For tire-type mobile crusher plant, the traction and mobility of the existing truck should also be considered. If the two do not match, it will affect the use and will also bring a waste of existing resources.

3.Consider the movement period. If the crushing equipment needs to move flexibly, the crawler mobile crusher is a better choice; if it does not need frequent transitions, then you can choose semi-mobile or tire-type, which can not only meet the mobile needs, but also reduce equipment purchase costs.

Get Price List
  • High Quality

    Mobile stone crusher is incorporated design. Feeder and vibrating screen integrated with jaw crusher, cone crusher, impact crusher, hammer crusher etc.

  • Customized Design

    With support legs on truck,quick to set-up. The mobile stone crusher plant supporting legs height can be adjustable, adopt hydraulic controling parts.

  • Good Performance

    Truck mounted and easy to move. Due to strong structure, mobile stone crusher can be transported on highway and moved between different crushing sites.

Product features

Mobile Crusher Plant can be used by single operator, feed can be done by truck, loader or excavator. Closed Circuit stone crushing system till to get desired size of product.

Working principle

A complete mobile stone crushing and screening plant which consists of raw material bins which located on one or more trailers, vibrating feeders, primary jaw crushers, multi-layer vibrating screens, secondary crushers, fine crushers, mobile belt conveyors, sand washers, electric control systems and etc. Mobile stone crusher plant incorporates all the equipment together on one truck, which has high chassis, narrower body compared with other trucks. Materials are fed to vibrating feeder by loader, then evenly go into jaw crusher for primarily crushing. The final aggregates will be tranport into piles by belt conveyor. Mobile jaw crusher could be used a singel crushing unit or work with mobile impact crusher or mobile cone crusher plant.

Mobile Jaw Crusher Plant

Specification

ModelSMC600SMC750SMC900SMC1060SMC1200SMC1300PEX
Transport size
Length(mm)860096001109713300158009460
Width(mm)252025203759290029002743
Height(mm)377035003500444045003988
Alex weight(kg)101211450021380384306400014730
King pin weight(kg)5118750010890194503400010490
Jaw crusher
ModelPEPEPEPEPEPEX
Feed opening(mm)400X600500X750600X900750X1060900X1200300X1300
Discharging hole setting range(mm)40-10050-10065-18080-18095-22520-90
Capacity(t/h)15-6040-11090-180110-380220-45030-105
Feeder
Feed hopper volume34710103
Hopper width220025003000300030002200
ModelZSW6520ZSW8530ZSW9638ZSW1142ZSW1349ZSW8530
Belt conveyor
ModelB650X6B800X7B1000X8B1000X11B1200X13B1000X7

*The output will vary according to different materials, feed particle size and other factors.
