PY Cone Crusher

PY Cone Crusher

Cone Crusher is normally to crush mid-hard and above mid-hard ores and rocks. It is popular stone crushing machines in manufactured sand production, aggregates production and mining operations. Cone crusher is used in secondary, tertiary crushing stages.

  • 35mm-200mmFeed Size
  • 30-280KWMotor Power
  • 10-800t/hProcessing capacity
  • 60S Quick response
  • 30 min Technical reply
  • 24h design proposal
  • Email:sales@zchmachinery.com

What is PY Cone Crusher?

Spring cone crusher is a medium and fine crushing equipment, the spring is not only a safety device but also affects the crushing force. The crushing chamber type is determined by the ore use: the standard type is suitable for medium crushing, the medium type is suitable for fine crushing, and the short head type is suitable for ultrafine crushing. Spring cone crusher is suitable for crushing hard and medium hard ores and rocks, such as iron ore, copper ore, limestone, quartz, granite, basalt, diabase, etc., widely used in metallurgy, construction, road construction, chemistry and phosphate and other industries.

PY Cone Crusher

How to choose PY Cone Crusher?

1. The moving cone rotates continuously, and the crushing process and unloading process are carried out alternately and continuously along the working surface, with high productivity.

2. Provide spring protection device, which greatly reduces downtime.

3. Near the discharge port of CS cone crusher crushing chamber, there is a parallel belt with an equal gap between the movable cone and the fixed cone, so that the finished product is uniform in size.

4. Symons cone crusher adopts two sealing methods of dry oil or water, so that dust and impurities cannot enter the body, thus ensuring the cleanness of the lubricating oil, prolonging the service life of sliding bearings and thrust ball bearings, and making the machine run reliably.

Get Price List
  • High Quality

    Cone crusher insurance system adopts spring overload protection, dry oil (or water) in the form of the seal to improve performance.

  • Customized Design

    Users could choose a PYB based on the standard head type, PYD short head type, PYZ for medium crushing chamber to get required crushed stone size.

  • Good Performance

    Heavy-duty design and use of high-quality components with optimized wear parts keep the operating costs down.

Product features

Easy maintenance, and easy to operate. Laminated crushing process makes the final material in good grain shape.

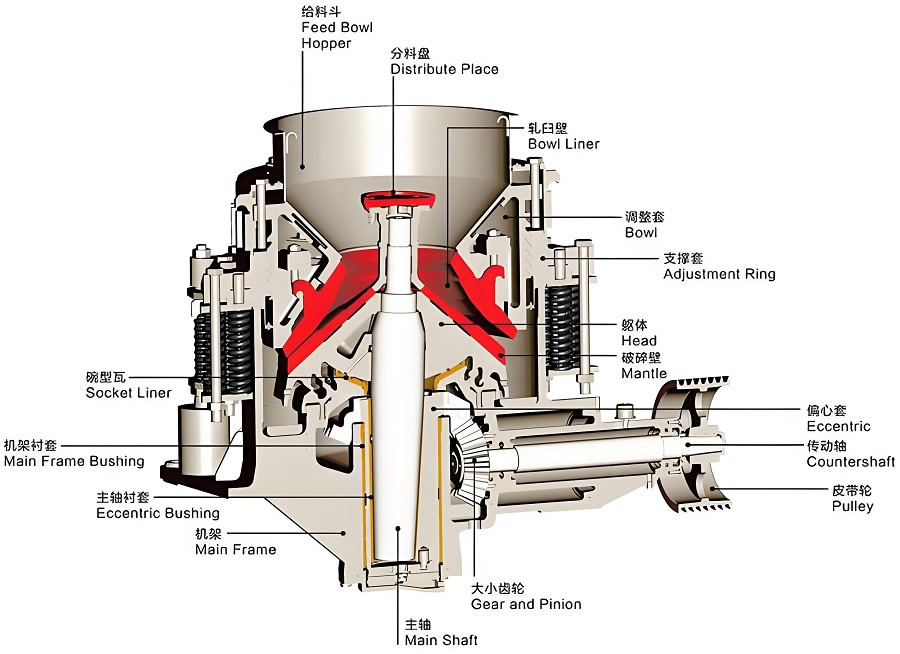

Working principle

Cone crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner.

The mantle is a moving part that gyrates in an eccentric motion though an eccentrically gyrating spindle. When rock enters the top of the cone crusher, it is squeezed between the mantle and the bowl liner or concave, as the eccentric spindle rotates to cause the compression within the chamber. The material gets smaller as it moves down through the wear liner as the opening in the cavity gets tighter. Large pieces of ore are broken once, and then fall to a lower position where they are broken again. This process continues until the pieces are small enough to fall through the narrow opening at the bottom of the crusher. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point.

Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine.

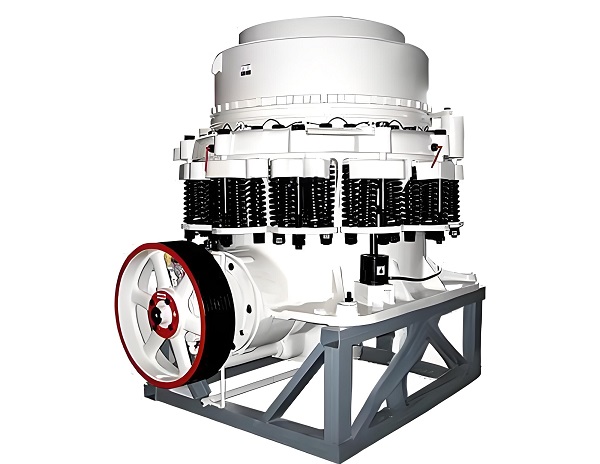

PY Cone Crusher

Specification

Model

Cone Dia.

(mm)

Max. Feed Size

(mm)

Adjusting Range of

Output Size(mm)

Capacity

(t/h)

Motor Power

(kw)

Overall Dimension

(mm)

PYB-6006006512-2515-25302800×1300×1700
PYD-600600353-155-23302800×1300×1700
PYB-90090011515-5050-90553050×1640×2350
PYZ-900900605-2020-65553050×1640×2350
PYD-900900403-1315-50553050×1640×2350
PYB-1200120014520-50110-2001104152×2300×2980
PYZ-120012001008-2550-1501104152×2300×2980
PYD-12001200503-1518-1051104152×2300×2980
PYB-1750175021525-60280-4801604870×3800×4192
PYZ-1750175018510-30115-3201604870×3800×4192
PYD-17501750855-1575-2301604870×3800×4192
PYB-2200220030030-60590-10002807705×3430×4852
PYZ-2200220023010-30200-5802807705×3430×4852
PYD-220022001005-15120-3402807705×3430×4852

*The output will vary according to different materials, feed particle size and other factors.
