About 150-250tph Sand making plant

Sand making plant is a special production line for producing sand and aggregate materials for construction. In the sand making plant, natural rocks, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand, so as to replace the natural river sand for the buildings and construction industries that need high-quality aggregates. Any kind of material with different hardness grades such as limestone, basalt, granite, dolomite, gabro can be crushed. In addition to sand (fine materail) it is also possible to produce other 3 different final fractions simultaneously.

Solution Details Display

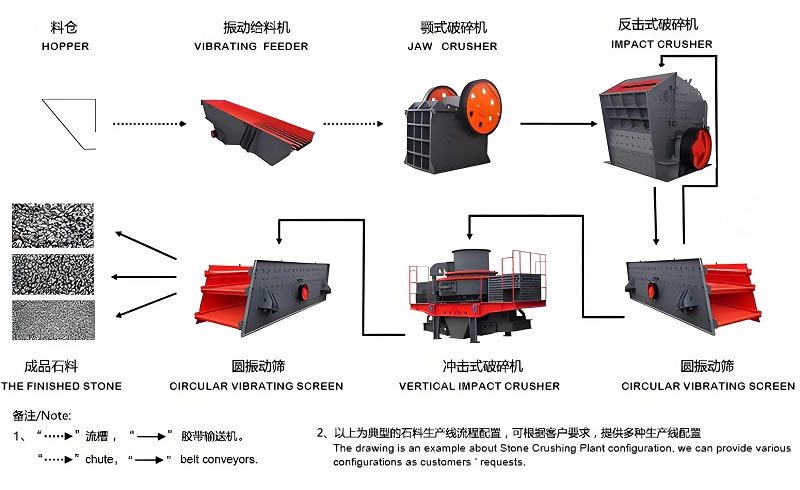

The main equipment of this production line includes a pe750x1060 jaw crusher, a CS220 cone crusher, a 3YK1860 vibrating screen, and a VSI9526 sand-making machine.

Equipment configuration	Hopper, ZSW1100x4200 vibrating feeder, PE750x1060 jaw crusher，HPC300/CS220 cone crusher (or impact crusher), VSI9526 sand making machine, Vibrating screen, Sand recycling machine, Belt conveyor.
Raw materials	Limestone, Granite, Basalt, Quartz, River stone etc.
Feed Size	Less than 630mm
Capacity	150-250t/h
Finished product	Fine sand 0.25-0.35mm, medium sand 0.35-0.5mm, coarse sand 0.5mm
Application	In sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.
Advantages	High production efficiency and low operating cost; Multi-functions and Flexible application; Good shape of finished sand and fineness is adjustable.

150-250tph Sand making plant Features

1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.

2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.

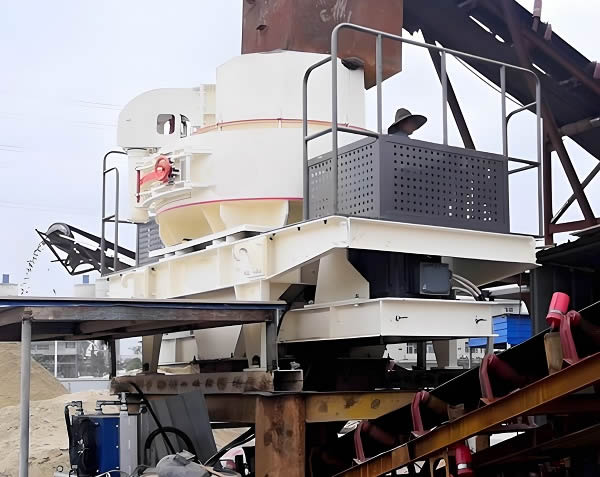

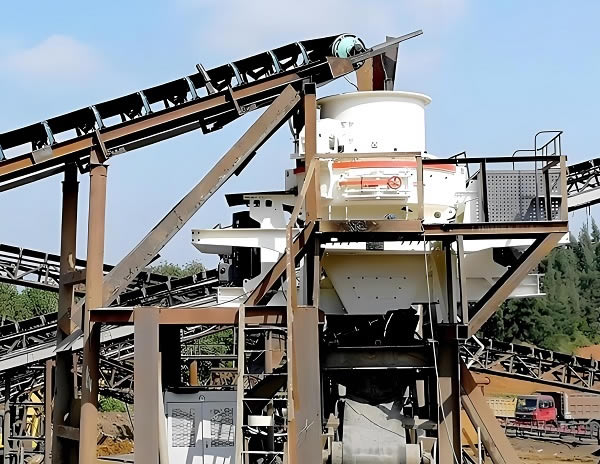

3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.

4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.

5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.
