What is Magnetic Separator?

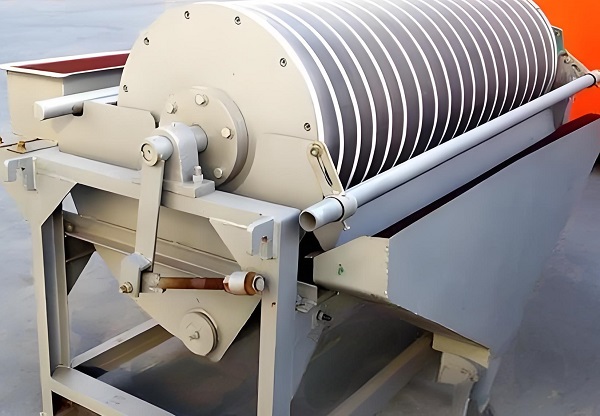

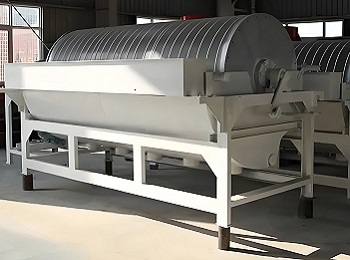

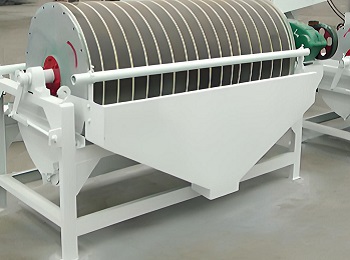

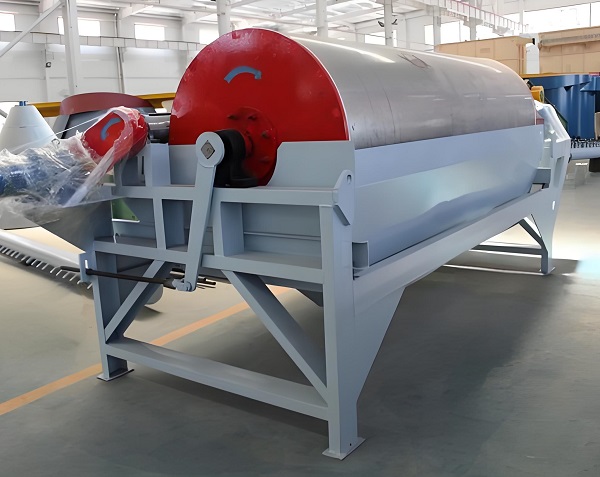

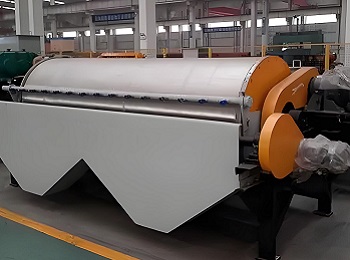

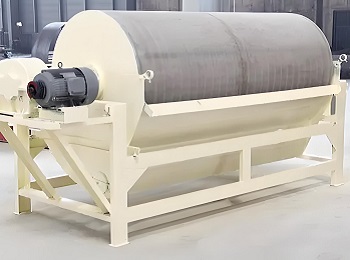

Permanent drum magnetic separator is a magnetic separation equipment for various metallurgical mines to separate magnetic fine particles or remove magnetic minerals mixed in non-magnetic minerals. Wet magnetic separator is a commonly used magnetic separation equipment in iron ore processing plants, which requires water as a medium, it can sort fine particles of ore. Magnetic separator is mainly used for magnetite, limonite, ilmenite, etc. It can separate elemental minerals from gangue, sediment to improve the quality of minerals.
How to choose Magnetic Separator?

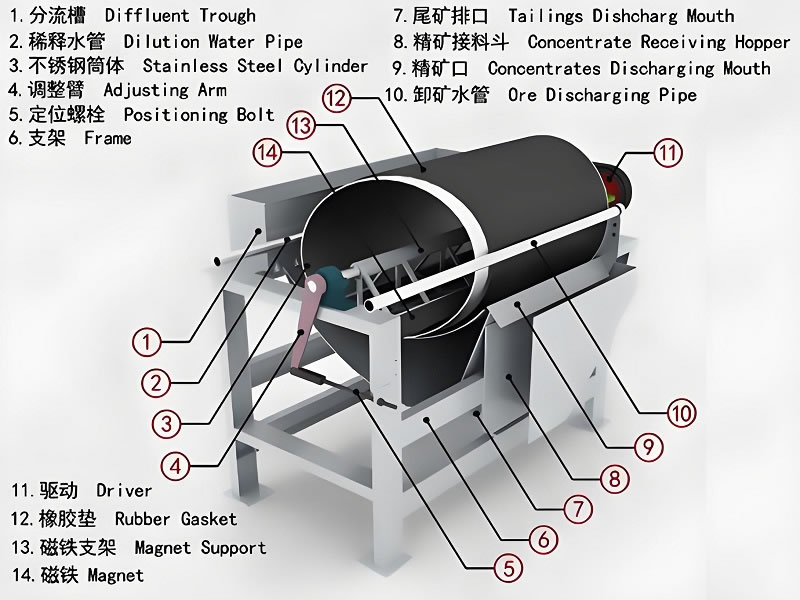

The magnetic strength of magnetic separator surface is different, and the applicable materials are also different. The stronger the magnetic field, the greater the ability to attract weak magnetic materials. The tank body of the wet magnetic separator has three forms, which are divided into semi-counter current tank, counter-current tank and downstream tank, and the semi-counter-current tank and downstream tank can be used in combination.
1.Semi-counter current tank. It is suitable for rough selection or beneficiation of strong magnetic minerals with a particle size between 0-0.5mm, especially for the beneficiation of ore particles between 0-0.15mm.
2.Countercurrent tank. It is suitable for roughing or sweeping of strong magnetic minerals with particle size between 0-0.6mm. It is especially suitable for heavy medium recovery in coal washing plants, etc.
3.Downstream tank. It is suitable for roughing or refining minerals with a particle size between 0-6mm.
4.Both the semi-counter current tank and the downstream tank can be used in series to improve the concentrate grade.
