Product Center / Sand Making Machine / Wheel Sand Washing Machine

Wheel Sand Washing Machine

The Sand washing machine is used to wash stone powder and residual away from the sand. It is widely used in sand washing plant.

≤ 10MMFeed Size
4-30KWMotor Power
30–160 t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Wheel Sand Washing Machine?

Wheel Washer is used to wash and separate soil and other impurities in sand for the purpose of increasing sand quality. Due to simple design, it has an ease in assembly process, the bucket wheel provides advantages to the users with low power consumption and water saving. It could be made single wheel and double wheel type.

How to choose Wheel Sand Washing Machine?

The sand washing machine is indispensable equipment for sand, gravel, aggregate washing plant and widely used in the aggregate, mines, building materials, construction, concrete and other industries.

Sand washer can remove the impurities covering the surface of the sand and stone to improve the sand and gravel product quality.

It has almost no wearing parts except the screen mesh, long service life.

Convenient maintenance, large processing capacity, low power consumption, high cleanliness.

Get Price List

High Quality

Reasonable design, new-type seal structure and totally-enclosed oil bath type transmission device.
Customized Design

The screen is composed of thick steel plate and the mesh is punched.
Good Performance

High capacity, low power consumption.

Product features

Water-saving, no pollution and long life span.

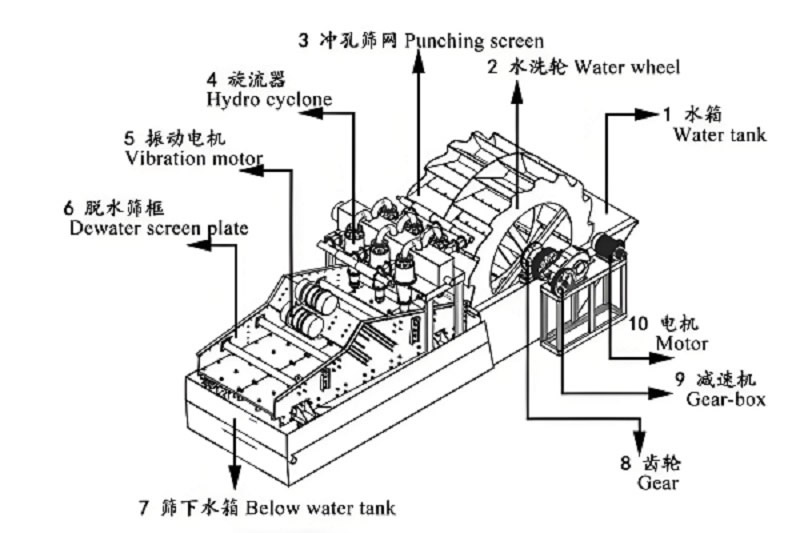

Working principle

When XSD sand washing machine begin running, the impeller rotates slowly drived by motor and reducer, sand and gravel from the feed chute into the wash tank cleaning, rotation of the impeller take the water and sand away through the sieve filter out the clean sand. Finally, gravel from the rotating impeller into discharge chute and completion of gravel cleaning effect.

Specification

Model	Impeller Dia.(mm)	Feeding Size(mm)	Capacity(t/h)	Motor Power(kw)
XSD2300	Φ2300	≤10	20-30	4
XSD2610	Φ2600		30-80	7.5
XSD2915	Φ2900		60-120	11
XSD3016	Φ3000		80-160	15
XSD3218	Φ3200		130-220	22
XSD3420	Φ3400		160-300	22-30
