About 100-150tph Sand making plant

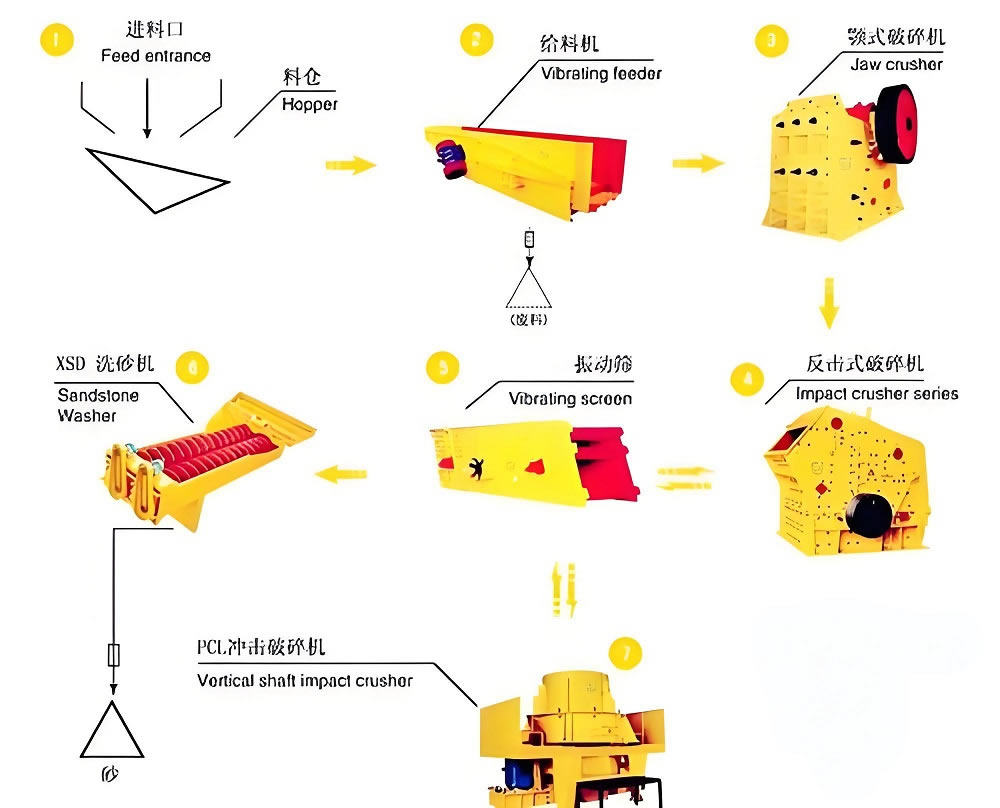

The equipment configuration of artificial sand making plant includes vibrating feeder, coarse crusher, medium and fine crusher, vibrating screen, sand making machine, belt conveyor. Among them, feeders, vibrating screens and conveyors are auxiliary equipment. In the sand making plant, natural rocks, limestone, granite, sandstones, river pebbles and other materials can be processed into artificial sand that meets the requirements of building sand. It is to replace the natural river sand for the buildings and construction industries which need high-quality aggregates.

Solution Details Display

The main equipment of this production line includes a pe600x900 jaw crusher, a PYB1200cone crusher, a 2YK2475 vibrating screen, and a VSI1150 sand-making machine.

Equipment configuration	Hopper, ZSW960x3800 vibrating feeder, PE600x900 jaw crusher，PYB1200/CS110 cone crusher (or impact crusher), VSIX1150 sand making machine, Vibrating screen, Sand recycling machine, Belt conveyor.
Raw materials	Limestone, Granite, Basalt, Quartz, River stone etc.
Feed Size	Less than 500mm
Finished product	Fine sand 0.25-0.35mm, medium sand 0.35-0.5mm, coarse sand 0.5mm
Capacity	100-150t/h
Application	In sand quarry, mine, construction site, highway, road and bridge construction, concrete mixing station, water conservancy and hydropower, chemical industry and other industries.
Advantages	High production efficiency and low operating cost; Multi-functions and Flexible application; Good shape of finished sand and fineness is adjustable.

100-150tph Sand making plant Features

1. Complete crushing and screening plant is consisting of one or several crushing and screening units based on the customers' needs.

2. This series of plant is used to crush rocks in the industries such as road construction, building construction, construction materials, water and electricity and civil building etc working with commercial concrete, dry mixed mortar and mixing plant.

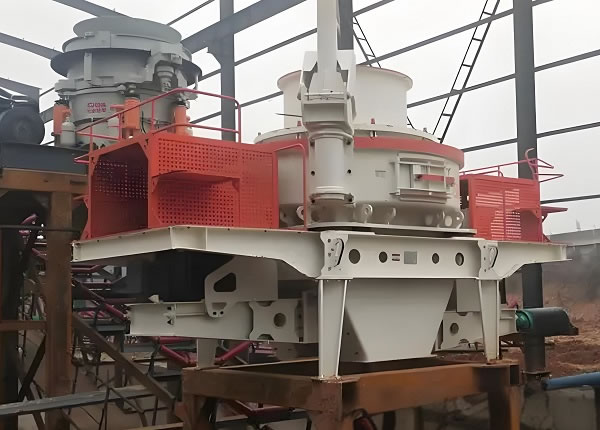

3. Core equipment for manufactured sand production line is sand making machine such as vsi crusher, vsi5x crusher etc.

4. It is suitable for crushing high quality of basalt, diabase, granite, river gravel, limestone and other hard or medium hard rocks.

5. High production efficiency, regular end product granularity, good grain cubical sand, and low powder content.
