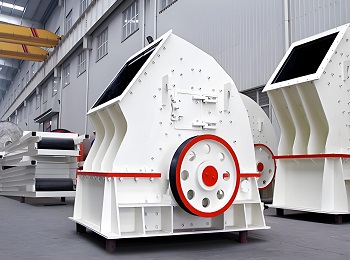

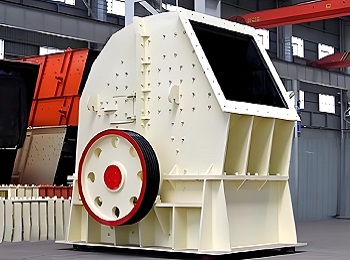

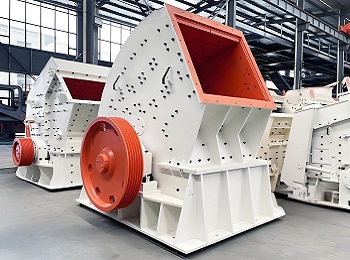

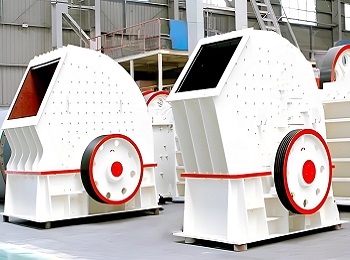

Heavy Hammer Crusher

PCZ series heavy hammer crusher is also called huge stone cusher. Because of the alloy composite hammer design, it decrease 35% production cost.

≤1200mmFeed Size
55-700KWMotor Power
100-700t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Heavy Hammer Crusher?

Heavy hammer crusher is a kind of stone crushing equipment advanced technology in hammer crusher series. It adopts advanced production technology to realize one-time feeding and get finished products. Finished materials can be adjusted according to demand, coarse, medium, fine, all kinds of specifications are complete. it is suitable for crushing various medium-hard and brittle materials with compressive strength of the crushed material does not exceed 350 MPa, such as limestone, coal, salt, gypsum, alum, brick, tile, coal gangue, etc.

How to choose Heavy Hammer Crusher?

1. With large crushing ration, heavy hammer crusher feeding granularity is large and discharge granularity is small. It could reduce the crushing stage and can save some equipment investment.

2. The heavy hammer crusher integrates coarse crushing and shaping functions when crushing stone. It does not need to go through the secondary crushing and shaping process.

3. With triple crushing force, the hammer head hits the material, the material hits the impact plate at high speed, and the stone rebounded by the impact plate hits the material hit by the hammer head. So PCZ hammer crusher can be more productive and energy-saving.

4. The heavy hammer crusher adopts a large blow bar to replace the hammer head of the original light hammer crusher. After optimized design, the kinetic energy is greater and the service life is longer.

Get Price List

High Quality

High capacity and low energy consumption.
Customized Design

Lower investment and get profits quickly.
Good Performance

Simple structure and easy maintenance.

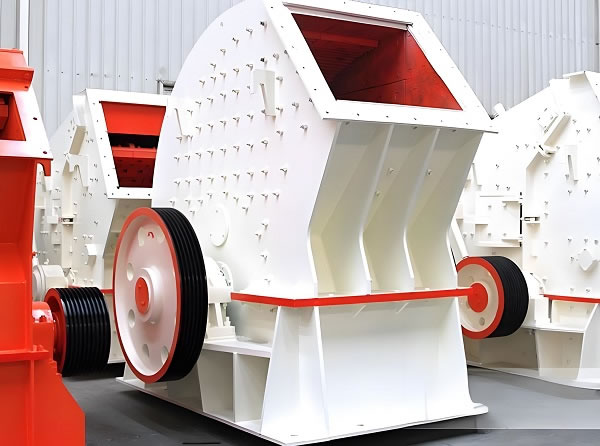

Product features

Reduce the risk of clogging and adhesion with wet and much soil raw materials using no grate design.

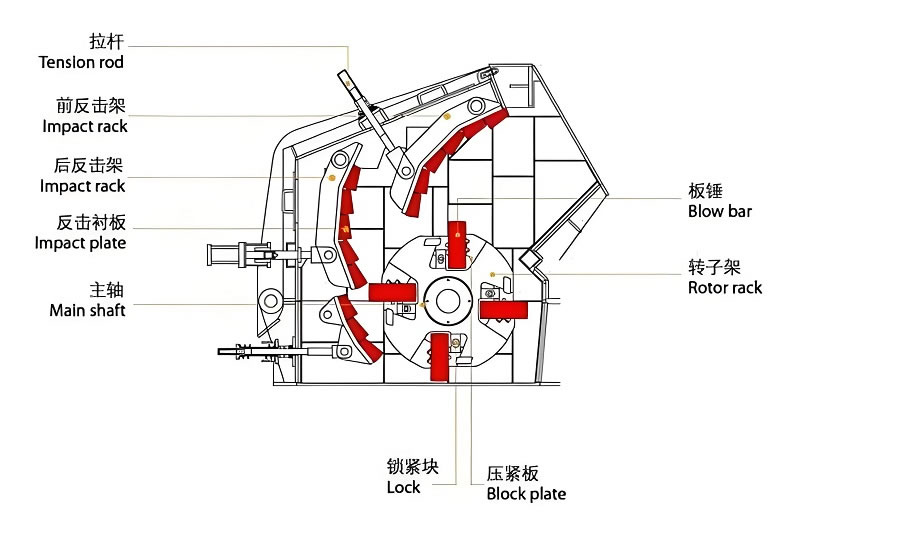

Working principle

Motor drives the rotor quickly in the crushing cavity. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them.

Without the grate design, wet and much soil raw material will not clogged. Finally, the finished porduct through the outlet smoothly.

Specification

Model	Feeding Size (W*L)(mm)	Rotor Size (Dia.xL)(mm)	Input Size(mm)	Power(KW)	Capacity(t/h)	Overall Dimension (mm)
PCZ-0808	800*5000	850*790	≤450	55-75	50-90	176017001540
PCZ-1308	850*800	1310*790	≤600	55*2	100-160	281821002390
PCZ-1510	1000*850	1500*950	≤750	132*2	160-210	326023702750
PCZ-1512	1210*900	1500*1160	≤750	160*2	220-350	326025802750
PCZ-1615	1500X1200	1650*1452	≤1000	200*2	350-500	345629153185
PCZ-2015	1500X1400	2000*1500	≤1200	315*2	500-800	388029903560
