About 500 tph stone crusher plant

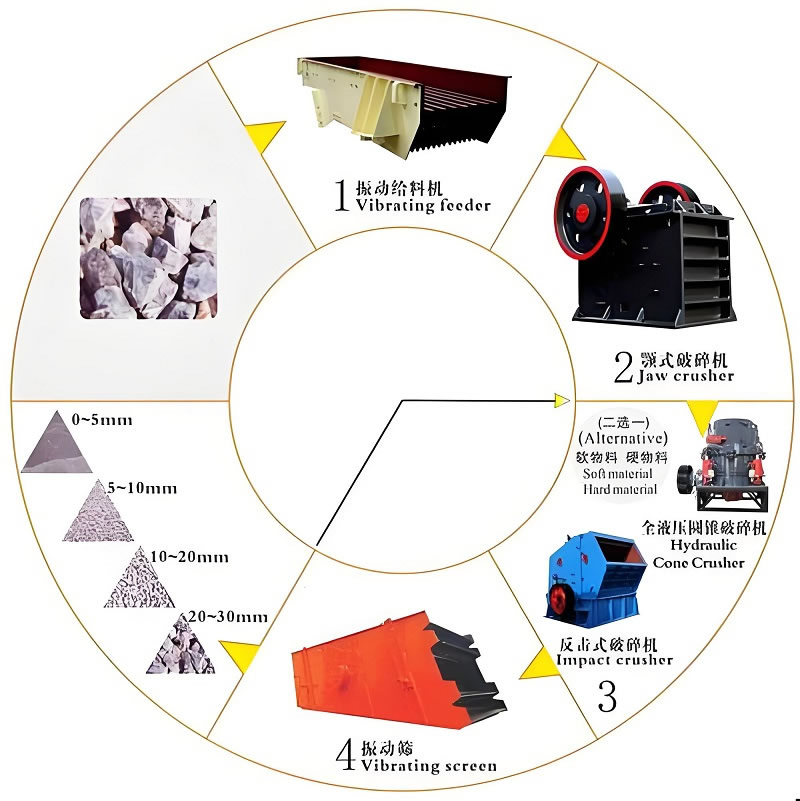

500tph crusher plant is a fixed type stone rock crushing and screening plant with 3 stage crushing process. It is typically constructed at a specific location and remains in that position for an extended period. They are commonly used in mining, quarrying, construction, and recycling industries, and consist of primary jaw crushers, secondary cone crushers or impact crushers, and sometimes tertiary crushers, along with screens, conveyors, and other equipment necessary for the crushing process.

Solution Details Display

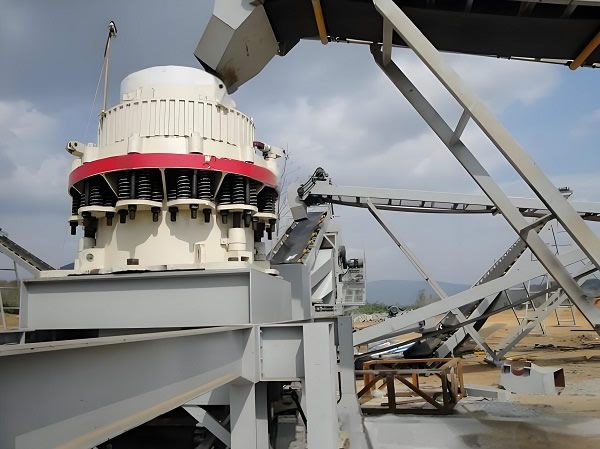

The main equipment of this crushing plant is a PE1000x1200 jaw crusher C140 Jaw crusher and two sets of HP300 cone crushers.

Equipment configuration

Hopper LC3000X4000, Vibrating feeder ZSW1300X4900,Vibrating feeder GZG125-4,Vibrating feeder GZG120-4,PE1000X1200 or C140 Jaw Crusher, Cone Crusher DG500,Cone Crusher HP300, 4YK2470 Vibrating Screen, and belt conveyor

Raw materials

This stone plant can crush more than 120 kinds of ore materials such as Feldspar, limestone, granite, basalt, Riverstone, and rocks.

Feed Size

900mm

Capacity

500t/h

Finished product

40 mm and down

Design requirements

1.The required production capacity

2.The type, hardness, and abrasiveness grade of the crushed material

3.the maximum size of the feed

4.The size of the desired final fraction

500 tph stone crusher plant Features

1. It is used to produce aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite, basalt, quartz, iron ore, etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

2. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction.

3. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

4. High production efficiency, regular end product granularity, good grain shape, and low powder content.

5. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.
