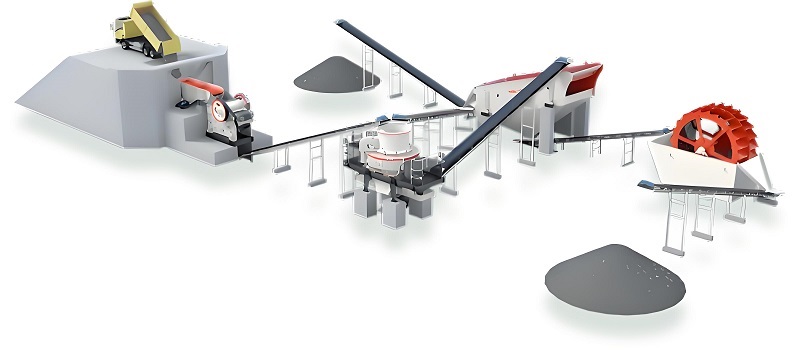

50tph stone crusher plant is composed of vibrating feeder ZSW650x2500, primary crushing machines jaw crusher PE400x600, secondary crushing machines impact crusher PF1007 or fine jaw crusher PEX250x1000, vibrating screen YK1237, belt conveyor and other equipment. It is primarily involved in the manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite,etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.
Equipment configuration
| ZSW6025 Vibrating feeder, PE400x600 Jaw Crusher, PF1007 Impact Crusher, 3YK1548 Vibrating Screen, and belt conveyor |
Raw materials
| This stone plant can crush more than 120 kinds of ore materials such as Feldspar, limestone, granite, basalt, Riverstone, and rocks. |
Feed Size
| 300mm |
Capacity
| 30-60t/h |
Finished product
| 60 mm and down |
Design requirements
| 1.The required production capacity 2.The type, hardness, and abrasiveness grade of the crushed material 3.the maximum size of the feed 4.The size of the desired final fraction |
1. The complete stone production plant is a two-stage crushing plant. It generally includes coarse (primary) and secondary crushing machine according to its output fineness.
2.. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction. It is suitable for application in hydropower, highway and urban construction, etc.
3. Applied material: limestone, granite, basalt, quartz, river stone, ballast, quartz, gold ore, iron ore, andesite and so on.
4. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.
5. High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.
6. We also design and provide stone crusher plant with capacity 100 t/h, 150 t/h, 200 t/h, 300 tph, 400 t/h, 500 t/h, 800 t/h, 1000 t/h. The solution with flowchart and price could be sent for free.
