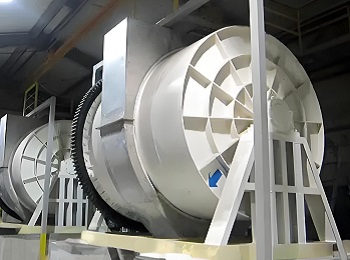

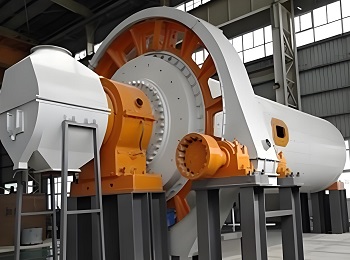

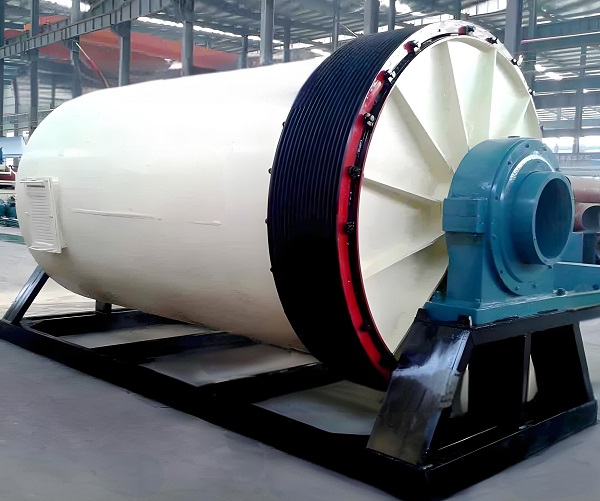

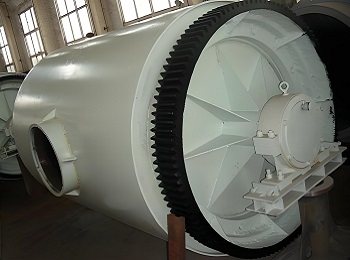

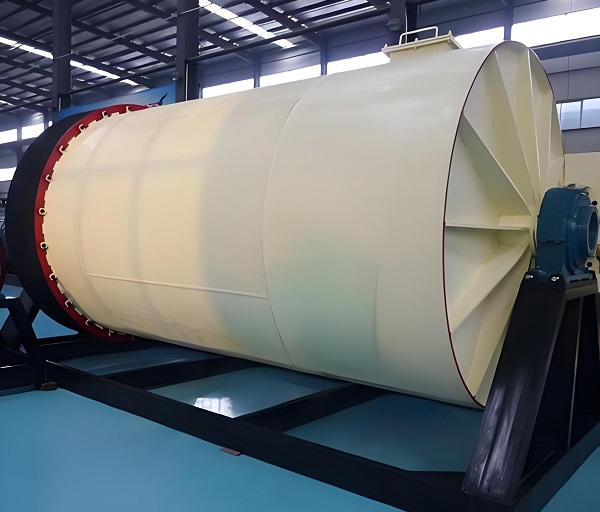

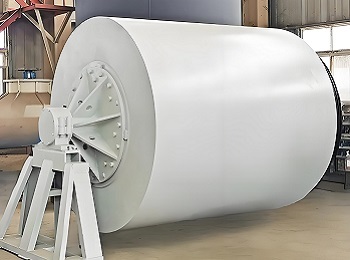

Ceramic Ball Mill

Ceramic ball mill is a kind of the best solution and specifically designed for high purity material. Inwall of ball mill using high alumina ceramic, zirconia, rubber wear resistant material to keep raw material free of metallic contamination during grindi.

≤25mmFeed Size
18.5-800KWMotor Power
0.65–90 t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Ceramic Ball Mill?

Ceramic ball mill is a kind of ball mill, and the difference is that its lining board is made of high aluminium ceramic, which can be made intermittent or continuous, dry or wet grinding. Ceramic Ball mill is widely used in high purity and ultrafine processing of quartz, feldspar, zircon sand, zirconium silicate, ceramic material, electronic material and fireproof material etc.

How to choose Ceramic Ball Mill?

1.Ceramic ball mill mainly used to mix and grind the material, the final product has average fineness. It is suitable for ceramic, glaze and quartz industry which has strict requirements for the iron content.

2.With wear-resistant ceramic liner and ceramic balls as grinding media, ceramic ball mill has high grinding precision and less metal impurities, which not only improves the service life of the equipment and the purity of materials, but also expands the application range.

3.According to different capacity, ceramic ball mill could be made into batch type and continuous type.

Get Price List

High Quality

Different lining boards and grinding mediums are available for milling different materials to guarantee the purity and whiteness of finished products.
Customized Design

The ball mill could be equipped with steel plate, high aluminum porcelain lining or rubber lining plate to meet different requirement.
Good Performance

Adopted energy-saving technology and classification technique to save over 40% energy for producing same quantity materials.

Product features

Ball mill production line has a precise classification, so the produced materials have uniform fineness.

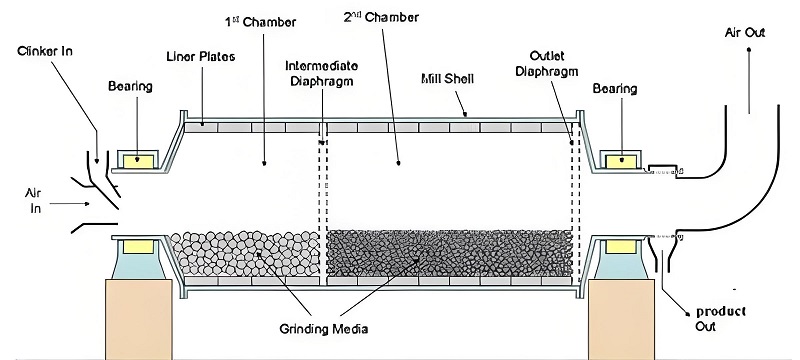

Working principle

Ball mill machine is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control. In powder grinding plant, ball grinding process flow includes crushing, milling, air classifying, packing, silos, bucket elevator, conveying,etc. Grinded material discharges from outlet grit fluently. Ball grinding mill is Formed a closed system with air classifier. Coarse material will be back to ball mill to grind again, and qualified material will go to be packed by worker or packing machine.Cleaned gas will be discharged by induced draft fans.

Specification

Model	Cylinder Rotating Speed (r/min)	Ball weight (t)	Feeding Size (mm)	Discharging Size (mm)	Capacity (t/h)	Power (kw)
Ф900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5
Ф900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22
Ф1200×2400	35	4.6	≤25	0.075-0.6	1.6-5.8	37
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37
Ф1200×4500	35	5.5	≤25	0.074-0.4	1.6-5.8	55
Ф1500×3000	29	9	≤25	0.074-0.4	2-7	75
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110
Ф1500×5700	29	17	≤25	0.074-0.4	3.5-6	110-130
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245
Ф2100×7000	23.7	26	≤25	0.074-0.4	8-48	280
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380
Ф2400×3000	21	23	≤25	0.074-0.4	30-50	245
Ф2400×4500	21	30	≤25	0.074-0.4	40-60	320
Ф2700×3600	20.7	40	≤25	0.074-0.4	45-80	430
Ф2700×4500	20.7	48	≤25	0.074-0.4	50-90	430
Ф2700×13000	20.7	60	≤25	0.074-0.4	50-90	630
Ф3200×4500	18	65	≤25	0.074-0.4	--	800
