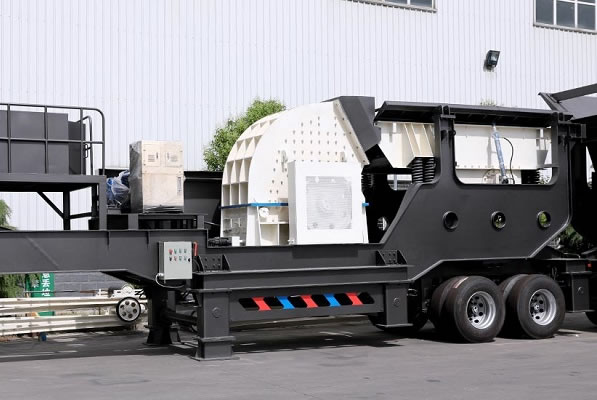

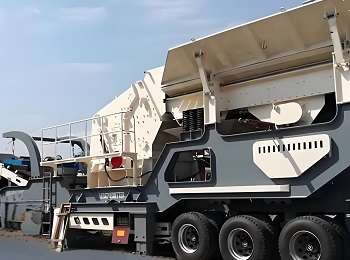

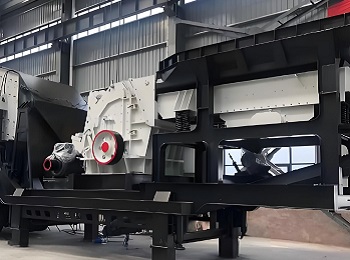

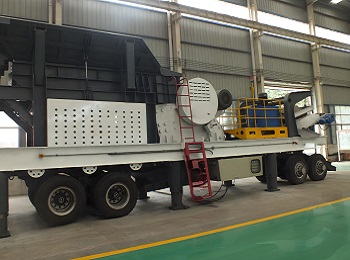

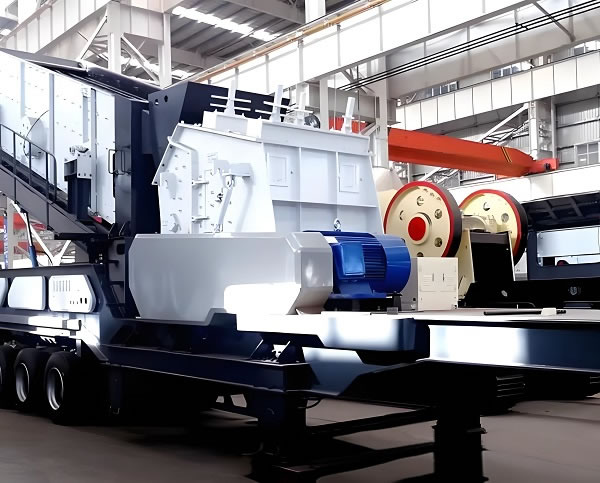

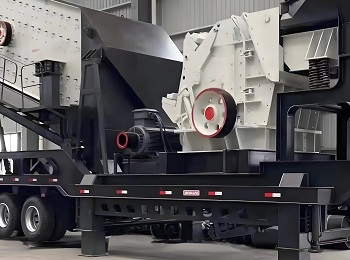

Mobile Impact Crusher Plant

Mobile impact crusher plant is easily movable and transferable crushing machines used to reduce the size of rocks and other materials in aggregates production, recycling applications and in mining operations. It produces good shaped cubical products.

100mm-1200mmFeed Size
60-300 kwMotor Power
10-180 t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Mobile Impact Crusher Plant?

Mobile impact crusher, equipped with high performance impact crusher and screening equipment, or add a feeder as a primary crushing machine. Related crushing equipment, screening equipment, feeding and conveying equipment are installed on a mobile device, with lightweight and reasonable structure design. The quality guarantee is reliable and stable. The mobile impact crusher plant has the characteristics of high crushing efficiency, multi-functionality, excellent quality of crushing products and so on. It can meet the crushing and screening requirements of coarse, medium and fine materials.

How to choose Mobile Impact Crusher Plant?

There are two kinds of mobile impact crusher, crawler type and tire type. Different types of stationary impact crushers can be configured as required, or they can be mounted on the same vehicle together with the vibrating screen to realize the integration of crushing and screening. According to the working structure, which configuration should be selected, the user can consult Zhongcheng Machinery engineer online, and we can provide you with model selection and crushing plant planning services for free.

The mobile impact crusher does not need to make concrete foundation. It can be pulled and moved and be used immediately. The tire-type mobile impact crusher is pulled by a semi-trailer,which is convenient for narrow sites. Crawler-type mobile impact crusher plant can move by itself, and it can be remotely controlled. Compared with wheel type, the transition mobility is more flexible;

You can also choose a single impact crushing machine, or an integrated configuration of impact crushing and screening plant. The mobile impact crusher can also work together with other mobile equipment, and multiple units can work in parallel to form a graded crushing and mobile crushing production line.

The mobile impact crusher can be used alone, but if the particle size of the raw material is too large, it is usually used in combination with the mobile jaw crusher.

Get Price List

High Quality

Incorporated design. It has high standard requirements on steel structure and high strength wear-resistance parts to crush even hardest rocks(400Mpa).
Customized Design

With support legs on truck,quick to set-up. The supporting legs height can be adjustable, adopt hydraulic controling parts.
Good Performance

This equipment integrates process equipment such as material receiving, crushing, and conveying. Through the simplification and optimization of the process flow, it has high performance in rock crushing, aggregate production, and open-pit mining crushing operations.

Product features

The device has the characteristics of easy operation and strong mobility，Configure an automatic lubrication system.

Working principle

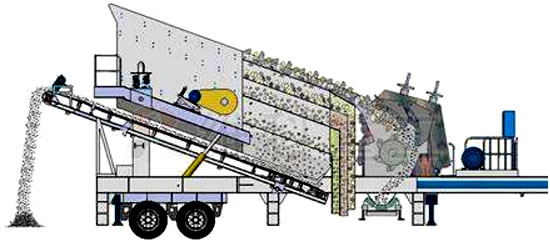

How mobile impact cruhser plant works? In the mining and quarry industry, mobile impact crusher plant is usually as secondary crushing machine to process rocks or ores from priamry jaw crusher plant. After impact crusher machine crushing, precisely shaped cubical end products is feed to vibrating screen to get different size material, 0-5mm, 5-10mm, 10-20mm, 20-40mm or some other required size. Vibrating screen is designed to be same level with impact crusher. The oversized material from first layer could be fed to impact crusher directly to crush again. Other required size is sent to stock ground by belt conveyor. Compared to stationary stone crusher plant, iIt has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

Specification

SMC Impact crusher	SMC1010PFS	SMC1210PFS	SMC1214PFS
Transport size
Length(mm)	10800	12200	12500
Width(mm)	2480	2743	2900
Height(mm)	4170	4200	4200
Alex weight(kg)	15900	17200	22100
King pin weight(kg)	11300	14300	17500
Impact crusher
Model	PF1010	PF1210	PF1214
Feed opening(mm)	400X1080	400X1080	400X1080
Vibrating screen	Vibrating screen
Model	4YK1235	4YK1545	4YK1548
