About 180-220tph Stone crushing plant

200tph stone crusher plant is a stationary stone crushing and screening plant. It could be customized to two stage crushing process or three stage crushing plant. The main machines includes: jaw crusher PE750X1060, cone crusher CS220 or HPC300, or impact crusher PF1320, vibrating screen and belt conveyors. It could manufacture of aggregates (coarse aggregates, crusher run, rock sand, fine aggregates) from limestone, granite, andesite, etc. Coarse aggregates are usually used in ready mix concrete and asphaltic concrete. Crusher run is used for the bases and sub-bases for road making. Fine aggregates are used for the production of concrete and plastering.

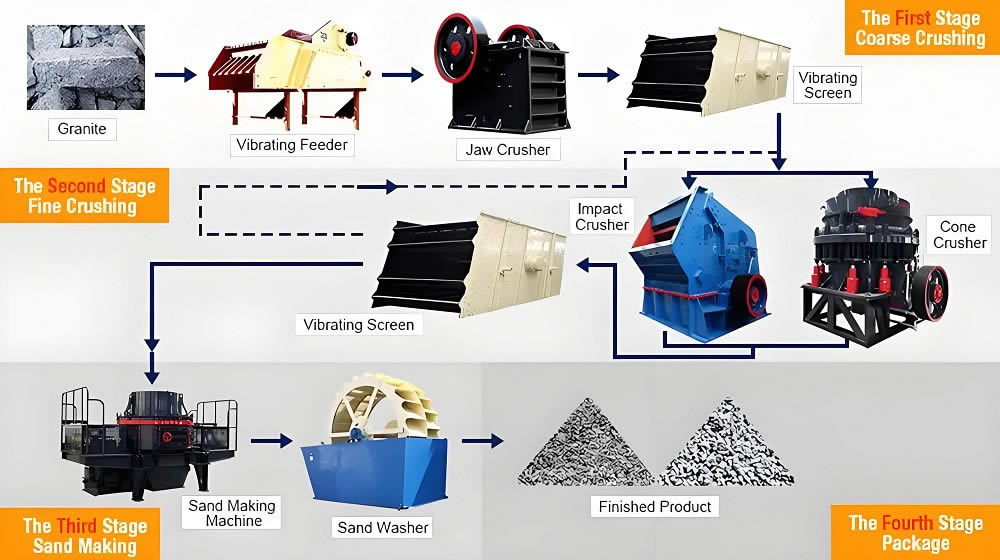

Solution Details Display

The main equipment of this crushing plant is a PE750x1060 jaw crusher and PFW1320 Impact crusher or CS220 cone crusher.

Equipment configuration	Hopper, ZSW1100x4200 vibrating feeder, PE750x1060 jaw crusher, CS220 cone crusher(PFW1320 impact crusher), Vibrating screen, Belt conveyor.
Raw materials	This stone-crushing plant can crush more than 120 kinds of ore materials such as limestone, granite, basalt, Riverstone, and rocks.
Feed Size	Less than 630mm
Capacity	180-220t/h
Finished product	3-100mm
Application	Produce aggregate of limestone, granite, basalt, river stone, marble, iron ore, dolomite, quartz, slag etc, which is widely applied for hydropower, construction, highway, railway, airport runway, civil engineering projects and etc.
Advantages	1.Low operating cost and high crushing rate; 2.Energy saving, large output and simple maintenance, in line with the national building sand standards; 3.Uniform particle size of finished products, reasonable configuration.

180-220tph Stone crushing plant Features

1. The complete stone production plant is a two-stage crushing plant. It could produce sand & gravels with various granularities of limestone, granite, dolomite, quartz etc.

2. The final size is 0-6mm(0-1/4' ), 6-12mm(1/4’-1/2’), 12-25mm( 1/2’-1’)(or other sizes according to your need) as aggregate for construction.

3. High degree of automatic operation. The whole crushing plant requires sevral workers for machine starting and stopping, routine maintenance.

4. High production efficiency, low cost, regular end product granularity, good grain shape, and low powder content. Adopting high advanced control system to ensure security and reliable operation of the entire stone crushing plant.

5. We also design and provide stone crusher plant with capacity 50 t/h 100 t/h, 150 t/h, 200 t/h, 300 tph, 400 t/h, 500 t/h, 800 t/h, 1000 t/h. The solution with flowchart and price could be sent for free.
