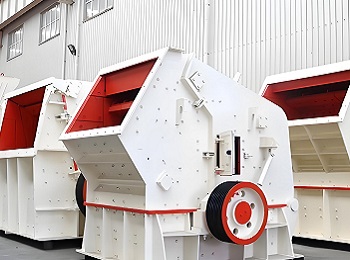

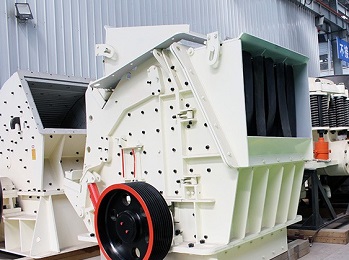

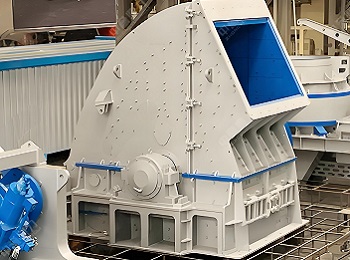

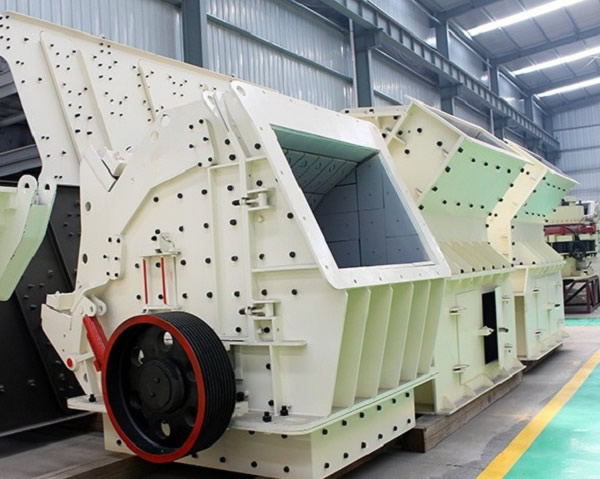

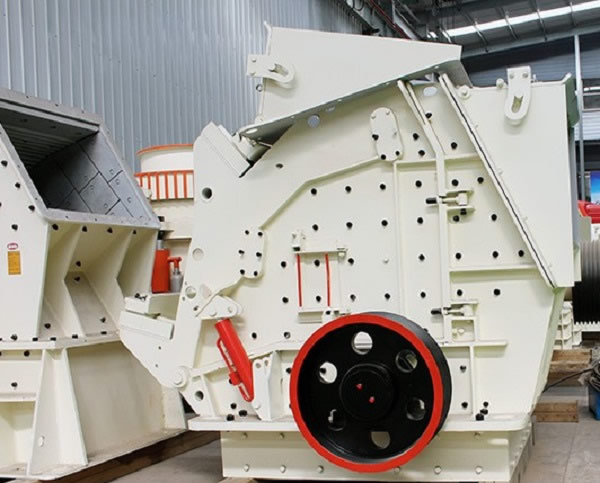

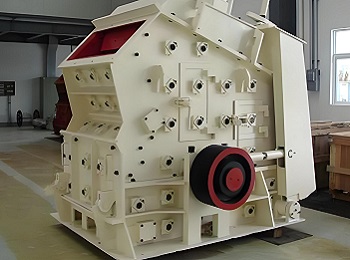

CI Impact Crusher

CI series impact crusher meets the needs of high-yield, energy-saving and environmentally friendly products. It is optimizing the rotor and crushing cavity type and could be used as primary crusher in mobile crushing plant and fixed stone cusher plant.

250-800mmFeed Size
160-1000kwMotor Power
60-2000 tphProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is CI Impact Crusher?

CI series impact crusher is an upgraded version based on working structure of PF impact crusher. According to the differences in physical and chemical properties of different materials,the rotor and crushing chamber are refined design, so that the service life of the equipment is greatly improved. CI impact crusher is suitable for crushing medium hardness materials, and crushing ratio is large, crushing capacity is strong. It is suitable for stones with medium hardness and low abrasion such as river pebbles, granite, basalt, limestone, quartz, etc. in quarry and gravel, cement, concrete and asphalt recycling, slag recycling and other industries.

How to choose CI Impact Crusher?

1.CI series impact crusher has a widened and enlarged feed port, which can directly feed large-diameter raw materials, adjustable discharge, large crushing ratio, high production efficiency, low wear and high comprehensive benefits.

2.Simplify the crushing process. The large-mouth impact crusher can perform coarse crushing or fine crushing, changing the original two-stage crushing into one-stage crushing process.

3.The use of hydraulic lifting and maintenance lifting devices can quickly complete the replacement of blow bars and other wearing parts, reducing downtime and equipment maintenance time, and reducing maintenance costs.

4.Integrated motor installation. The integrated motor installation is the standard configuration of CI series impact crusher. The motor frame and the crusher are integrated, which reduces the installation space of the crusher and the length of the V-belt.

Get Price List

High Quality

Strong and heavy-duty rotor structure improves capacity and crushing ratio; high-quality welded structure ensures maximum impact and good crushing effect.
Customized Design

Finely designed rotor and chamber type meets different application options for coarse crushing, medium and fine crushing and material recovery.
Good Performance

The equipment is equipped with a variety of safety locking devices to improve safety performance and reduce labor intensity.

Product features

Large feeding port, high production efficiency and low wear. It can directly feed large size stone, the output can be adjusted, and the crushing ratio is large.

Working principle

Impact crushers use high-speed impact to crush materials. When the material enters the action area of the blow bar from the feed port, it is first crushed by the high-speed impact of the blow bar, and the strong impact force throws the material to the impact plate for further crushing, and the material rebounded by the impact plate falls to the plate again. Continue to repeat the above process until the material is crushed to be smaller than the size of the discharge port, and it will be discharged from the discharge port due to its own weight.

Specification

Model	Max feeding size(mm)	Power (kw)	Capacity (t/h)	Dimentsion (mm)
CI1110	250	160	60-210	2826×2087×2285
CI1213	300	200	80-280	2903×2530×2411
CI1316	300	250	100-350	3320×2770×2535
CI1521	350	2×(200-250)	200-600	3450×3620×2770
CI1313	600	200	100-480	2972×2560×2937
CI1415	600	250	120-600	2985×2790×3068
CI1620	800	2×(200-250)	220-900	4261×3480×3780
CI2023	800	2×500	400-2000	5151×4424×4712
