Mobile heavy hammer crusher plant

Mobile heavy hammer crusher is used to crush large stone into gravels and sand due to large crushing ratio. It could crush and screen large reinforced concrete in concrete recycling industry.

≤1200mmFeed Size
120-400kwMotor Power
50-450 tphProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Mobile heavy hammer crusher plant?

Mobile hammer crushing plant is a tire-type mobile crushing station mainly consisted by heavy hammer crushers. Heavy hammer crushers can directly crush materials with a particle size of 600-1200 mm to below 25 mm at one time. The equipment is suitable for crushing various medium-hard and brittle materials such as limestone with a compressive strength not exceeding 150 MPa and a calcium content higher than 40%. The mobile heavy hammer crusher has a large crushing ratio and a simple structure. It is assembled by the feeder and vibrating screen, hammer crusher and screening. The price is relatively cheap, and it has a wide range of applications, especially in construction waste field.

How to choose Mobile heavy hammer crusher plant?

According to material properties. That is the key factor affecting production efficiency and capacity. Therefore, before purchasing the mobile heavy hammer crusher plant, the user must have a detailed understanding of the humidity, hardness, physical and chemical properties of the materials to be crushed.

According to final product granularity requirement. Since each user has different requirements of product particle size,so we need to recommend a suitable mode according to customer's requirements .

Different tyeps and sizes correspond different selling price . When you are going to purchase a heavy mobile crushing plant ,you need to choose the proper model that can meet your need completely ,no matter price aspect or material aspect , and set your ultimate purpose to strive to obtain large returns with a small investment.

Get Price List

High Quality

The whole line is highly automatic. Feeding, crushing and screening machines are all-in-one carbody.
Customized Design

High crushing ratio. The heavy hammer crusher could crush large size stone into small granules.
Good Performance

Low operation cost. It needs only several workers to work on this plant.

Product features

The size of the finished product is even and in good shape, which meets the national standards.

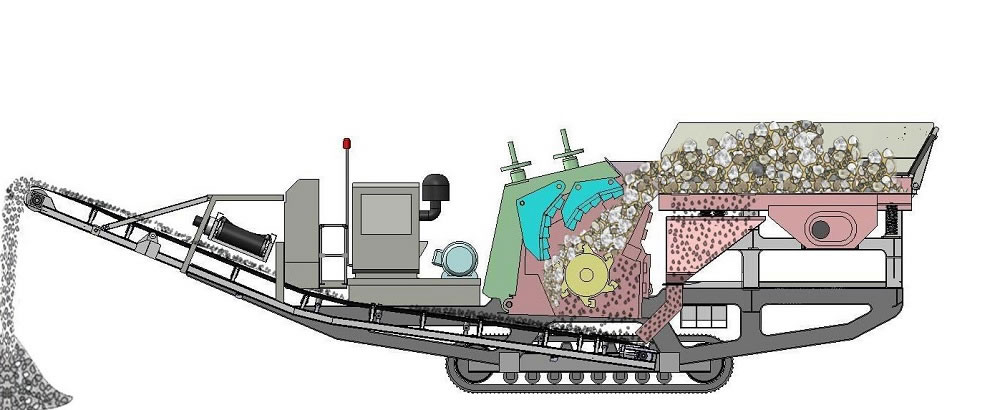

Working principle

The mobile construction waste crushing plant includes vibrating feeder, stone crusher, vibrating screen, belt conveyor, magnetic separator etc. After construction waste is fed to vibrating feeder by the loader, the material be transmit to crusher, they are crushed by heavy hammer crusher. The discharge materials will be sent to vibrating screen by belt conveyor which be made as foldable style. After screen, the unqualified large size gravels will be crushed again, the qualified aggregates will be piled out for further processing, such as iron removing , wood chips separating , cleaning etc.

Specification

Item	M3S1848PCZ1308	M3S1860 PCZ1510	M3S1860 PCZ1512
Transportation Length(mm)	14000	16000	16000
Transportation Width(mm)	3100	3100	3100
Transportation Height(mm)	4300	4500	4500
Maximum Length(mm)	14000	16400	16400
Maximum Width(mm)	3400	3400	3400
Maximum Height(mm)	4700	4700	4700
Weight(ton)	34.5	49.5	41
Tire Configuration	Dual-axial	Dual-axial	Tri-axial
Crusher	PCZ1308	PCZ1510	PCZ1512
Belt Converyor under Vibrating Screen	B800×7M	B800×8M	B800×8M
Vibrating Screen	3YZS1848	3YZS1860	3YZS1860
