The role and workflow of construction waste sorting equipment

Introduction: With the acceleration of urbanization, the generation of construction waste has increased dramatically. How to deal with these wastes efficiently and environmentally has become a major challenge facing modern society. The emergence of a complete set of construction waste treatment equipment and waste sorting equipment provides a practical solution to this problem. Construction waste sorting equipment is specially designed to handle waste from building demolition and construction processes. Its function is to efficiently and accurately separate reusable materials from waste materials that require special treatment. These equipment classify different materials such as concrete, bricks, metal, and wood through various technical means such as screening, magnetic separation, and winnowing to promote resource recycling.

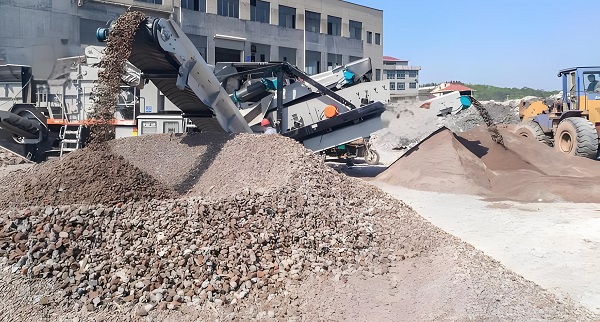

Construction waste screening production line

A. The role of construction waste sorting equipment

Construction waste sorting equipment is mainly used to classify mixed waste to improve the recycling rate of resources. This type of equipment usually includes core components such as trommel screens, vibrating screens, wind separators, and photoelectric separators. Construction waste sorting significantly improves the recycling rate of building materials, reduces the demand for primary resources, and reduces the environmental impact caused by the extraction of natural resources. Effective sorting of construction waste helps reduce pressure on landfills, avoids unnecessary land occupation, and reduces the risk of soil and water contamination that may be caused by improper disposal. In addition, this also helps reduce the cost of construction projects, as reused materials are often more economical than new materials. Promoting the use of construction waste sorting equipment is in line with the concepts of green building and sustainable development, and has a positive demonstration effect in promoting the transformation of the construction industry in a more environmentally friendly direction.

Construction waste separation promotes the recycling of resources. Materials such as plastics, metals and paper can be re-entered into the production process after processing, helping to save natural resources. Effective separation of hazardous waste can prevent environmental pollution and protect the health of the ecosystem. Good waste classification is the basis for achieving waste reduction, harmlessness and resource utilization, and plays an irreplaceable role in promoting sustainable development. With the improvement of public awareness of environmental protection, the application of garbage sorting equipment has also promoted the progress of social civilization.

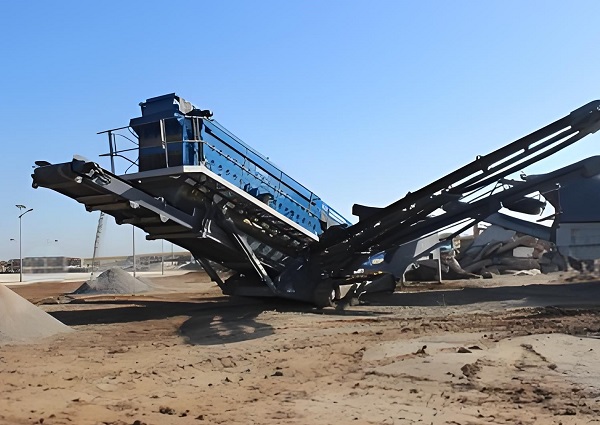

Construction waste screening production line

B. Work flow of construction waste sorting equipment

1. Pretreatment: Large pieces of construction waste first enter the primary crusher for coarse crushing, breaking them into smaller pieces. Carry out preliminary crushing and impurity removal treatment for mixed garbage.

2. Secondary crushing: The materials after primary crushing enter the secondary crusher for further crushing to a smaller particle size.

3. Vibrating screening: The crushed materials use wind power to separate light materials (such as plastic films) from heavy materials, and then classify them through a vibrating screening machine. Separate materials of different particle sizes. Garbage is separated according to particle size through a trommel screen or vibrating screen.

4. Magnetic separation and air separation: Use magnetic separators and air separation machines to remove metal and non-metallic impurities in materials and improve resource recovery rates.

5. Photoelectric sorting: Identify objects of different colors through photoelectric sensors to achieve precise classification.

6. Manual assistance: For items that are difficult to automatically identify, secondary sorting can be done manually.

7. Conveying and storage: The final processed materials are sent to the designated location through the conveyor belt for storage or further processing.

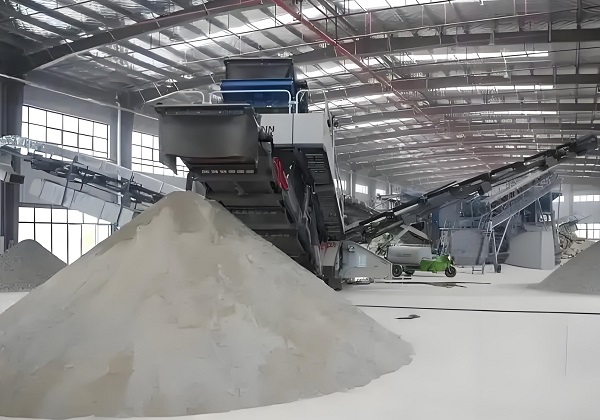

Construction waste screening production line

C. Application advantages of construction waste sorting equipment

1. Small footprint: suitable for construction sites or urban areas with limited space.

2. Strong mobility: Some equipment is designed with tires or tracks to facilitate transfer between different locations.

3. Easy to operate: high degree of automation, reducing manual intervention and improving work efficiency.

4. Environmental protection and energy saving: adopt advanced dust removal system and noise control technology to reduce the impact on the environment.

5. Efficient and accurate: Combining multiple sorting technologies to improve the accuracy and efficiency of garbage classification.

6. Wide adaptability: Suitable for different types of garbage disposal scenarios, such as community garbage stations, commercial areas, etc.

7. High cost-effectiveness: Compared with large sorting centers, the investment and maintenance costs of equipment are lower.

8. Promote circular economy: effectively improve the quality and quantity of recyclables and promote resource reuse.

PS: The introduction of a complete set of construction waste treatment equipment and garbage sorting equipment not only solves the problem of construction waste and domestic waste treatment, but also promotes the recycling of resources, which is in line with the concept of sustainable development. With the continuous advancement of technology and the expansion of application scope, these devices will play an even more important role in future environmental protection undertakings. Construction waste sorting equipment plays a key role in modern waste management, and its main role is to efficiently separate different types of waste. Through mechanical and automated technology, these devices can quickly distinguish recyclables, organic matter and other garbage, greatly improving the efficiency and accuracy of garbage classification. This not only reduces the cost and time of manual sorting, but also reduces classification inaccuracies caused by human error.
