Features and advantages of magnetic separator

Magnetic separator is a mechanical device that uses the magnetic characteristics of magnetic equipment to effectively separate magnetic materials from mixed materials. The following are the product features and advantages of magnetic separators, which are introduced in detail in combination with multiple dimensions.

A. Product features of magnetic separators

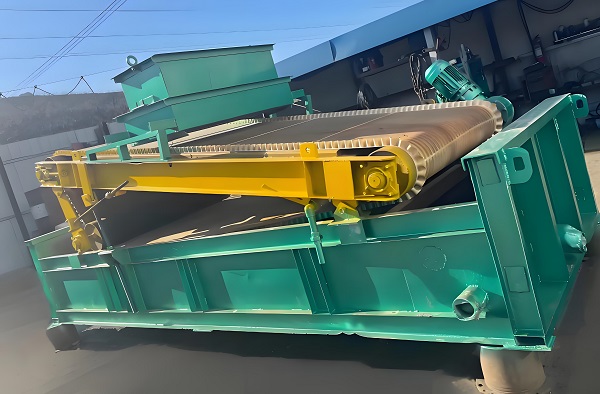

Magnetic Separator

1. Magnetic field strength and variety of types:

Magnetic separators can be divided into weak magnetic field magnetic separators, medium magnetic field magnetic separators, strong magnetic field magnetic separators and high gradient magnetic separators according to the magnetic field strength. These different types of magnetic separators are suitable for the separation of minerals with different magnetic strengths.

There are also various types of magnetic fields, including constant magnetic field, rotating magnetic field, pulsating magnetic field, etc. The magnetic field strength and direction of the constant magnetic field magnetic separator are constant, the magnetic poles of the rotating magnetic field magnetic separator rotate around the axis to generate a rotating magnetic field, and the pulsating magnetic field magnetic separator uses an electromagnet that simultaneously passes direct current and alternating current as the magnetic source, and the magnetic field strength changes over time.

2. Magnetic separation medium and processing form:

Magnetic separators can be divided into dry magnetic separators and wet magnetic separators according to the different separation media. Dry magnetic separators are more suitable for processing materials with low water content to avoid adhesion and agglomeration; wet magnetic separators have requirements for slurry concentration and are suitable for the separation of fine and micro-fine materials.

The main working part of the magnetic separator has structural differences, including drum magnetic separators, roller magnetic separators, disc magnetic separators, ring magnetic separators and belt magnetic separators. These different types of magnetic separators are different in design and working principle and are suitable for different material separation needs.

3. Magnetic system structure and quantity:

According to the different magnetic system structures, magnetic separators are divided into open magnetic system magnetic separators and closed magnetic system magnetic separators. The magnetic flux of the open magnetic system magnetic separator is dispersed and the air gap magnetic resistance is large, while the closed magnetic system magnetic separator adopts a face-to-face configuration of magnetic poles, and various shapes of inductive ferromagnetic media are added between the magnetic poles to form a part of the ferromagnetic circuit, which can generate strong magnetic force.

Magnetic separators can also be divided into single-drum magnetic separators, double-drum magnetic separators and combined multi-drum magnetic separators according to the number of magnetic systems to meet different production needs.

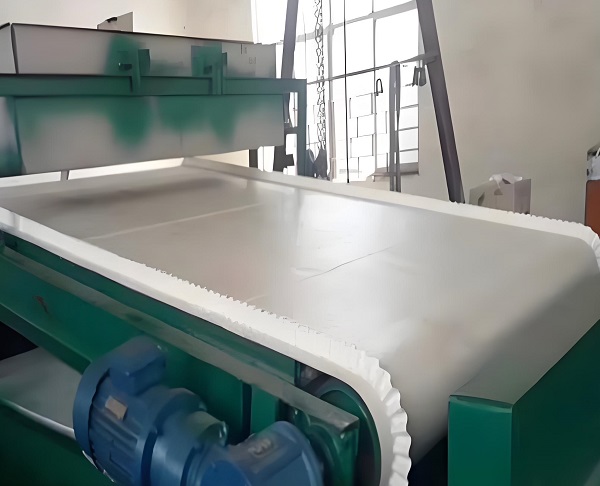

Magnetic Separator

4. Mineral selection method:

Magnetic separators can be divided into suction magnetic separators, suction magnetic separators and attraction magnetic separators according to the way magnetic minerals are selected. Suction magnetic separators can usually obtain high-quality concentrates, suction magnetic separators perform better in terms of recovery rate, and attraction magnetic separators mainly rely on the gravity of the ore particles themselves to discharge magnetic products.

5. Feeding and tank structure:

Magnetic separators can be divided into downstream magnetic separators, countercurrent magnetic separators and semi-countercurrent magnetic separators according to the feeding method and tank structure type. The slurry feeding direction of the downstream magnetic separator is consistent with the rotation direction of the cylinder (magnetic system); the countercurrent magnetic separator is the opposite; the semi-countercurrent magnetic separator combines the characteristics of the downstream and countercurrent types.

B. Advantages of magnetic separators

1. Efficient separation ability:

Magnetic separators can efficiently separate materials through a reasonably designed magnetic system and magnetic field strength. Whether it is a strong magnetic mineral or a weak magnetic mineral, the magnetic separator can achieve effective separation, so that magnetic materials and non-magnetic materials can be clearly distinguished.

2. Non-contact operation:

The separation process of the magnetic separator is usually non-contact, and the materials are separated by magnetic force in the magnetic field without direct contact with any mechanical device. This non-contact operation mode reduces the wear and pollution of the materials and ensures the quality and purity of the separated materials.

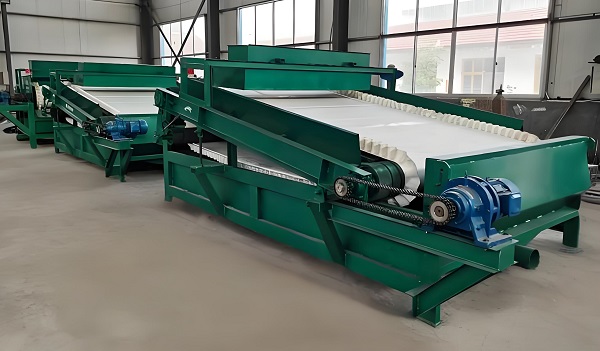

Magnetic Separator

3. Wide working range:

The magnetic separator is suitable for processing a variety of materials of different properties. Whether it is coarse or fine particles, whether it is wet or dry, the magnetic separator can effectively separate. This wide working range makes the magnetic separator widely used in many industries.

4. Flexible adjustment:

The magnetic field strength and magnetic field area of the magnetic separator can be adjusted according to the specific material properties and separation requirements. By changing the intensity and distribution of the magnetic field, different processing effects on the material can be achieved. This flexible adjustment capability enables the magnetic separator to adapt to different production needs and material characteristics.

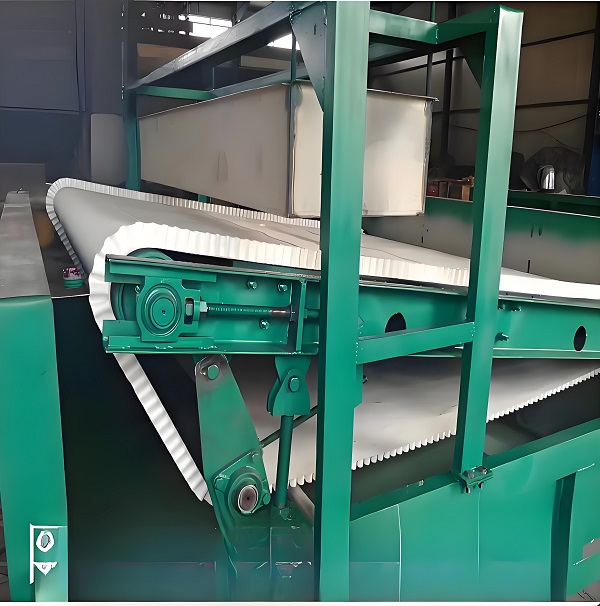

Magnetic Separator

5. Continuous feeding and discharging:

Wet magnetic separators can feed and discharge ore continuously, and have a high processing capacity. At the same time, the wet magnetic separator has a large magnetic field depth and a large working gap, and can handle a large amount of materials. In addition, the wet magnetic separator can also be equipped with different tank structures to meet different sorting requirements.

6. Save resources:

Dry magnetic separators are not restricted by water sources, can be produced continuously, and improve equipment utilization. At the same time, dry magnetic separators do not need to use water, save water resources, and avoid the generation of sludge and sewage. This is of great significance for areas with water shortages and modern society with increasing environmental awareness.

7. Widely adaptable to industries:

Magnetic separators have various specifications and models to meet the needs of various industries. Whether it is coal, ore, non-metallic minerals or other materials containing magnetic components, magnetic separators can effectively separate them. In addition, some magnetic separators can also be used for multiple purposes, further improving the utilization rate and economic benefits of equipment.

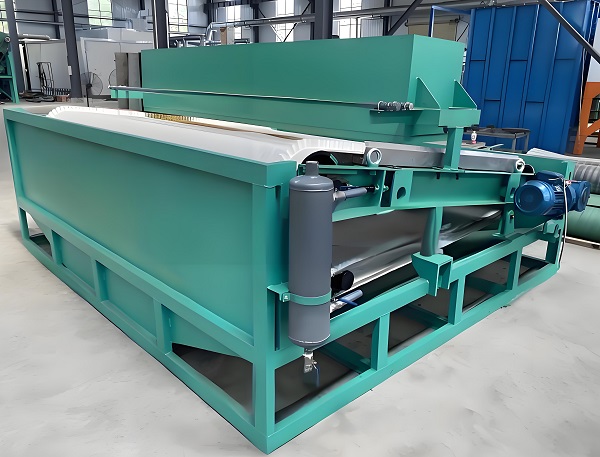

Magnetic Separator

8. High degree of automation: Modern magnetic separators are usually equipped with advanced automatic control systems and detection devices, which can realize automatic operation and remote monitoring. This not only improves production efficiency, but also reduces the labor intensity and training costs of operators. At the same time, the automatic control system can also monitor the operating status and separation effect of the equipment in real time to ensure the stable operation of the equipment and the stable improvement of separation quality.

9. Low maintenance cost: The structure of the magnetic separator is relatively simple and easy to maintain and maintain. At the same time, the operation of the magnetic separator is stable and reliable, with a low failure rate. This reduces the operating and maintenance costs of the enterprise and improves the economic benefits and market competitiveness of the enterprise.

10. Significant environmental benefits: The magnetic separator does not produce harmful waste and pollutants during the separation process, which is environmentally friendly. At the same time, the magnetic separator can also effectively recycle and utilize valuable magnetic mineral resources, reducing the waste and damage to natural resources. This is of great significance for protecting the ecological environment and promoting sustainable development.

PS: Magnetic separators have the characteristics and advantages of high separation capacity, non-contact operation, wide working range, flexible adjustment, continuous feeding and discharging, resource conservation, wide application in various industries, high degree of automation, low maintenance cost and significant environmental benefits. These characteristics and advantages make magnetic separators widely used in many industries and have broad development prospects.
