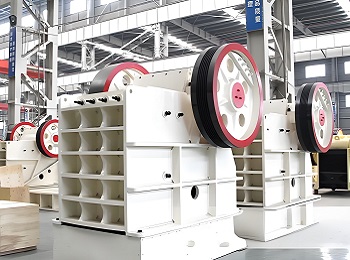

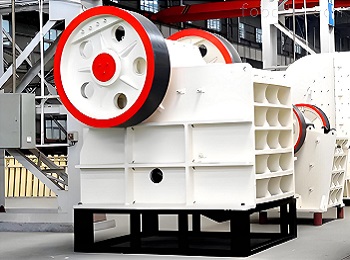

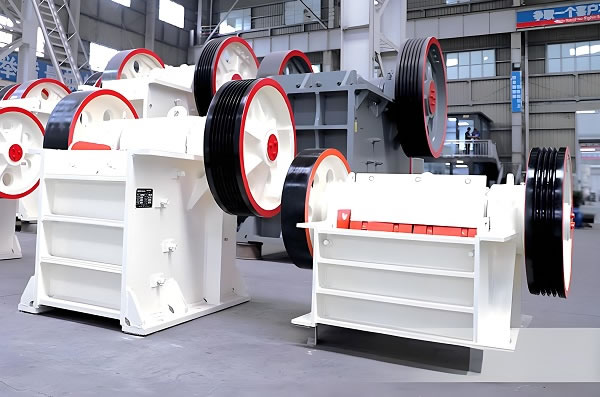

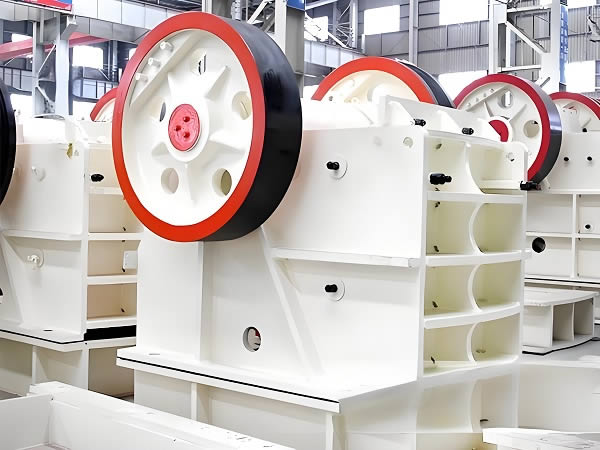

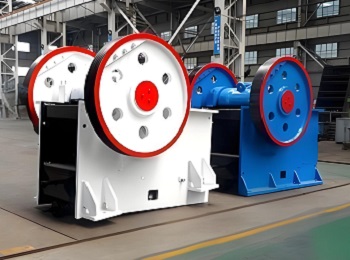

Jaw Crusher

Jaw crusher is a kind of stone crusher machine which is widely used as primary or secondary crusher in stone crushing plant. The purpose is to reduce hard stone material to a small size that it can be transported by conveyors to the next crushing stages.

100-1200mmFeed Size
5.5-280KWMotor Power
5-700t/hProcessing capacity

Get Quotes Leave Message

60S Quick response
30 min Technical reply
24h design proposal
Email:sales@zchmachinery.com

What is Jaw Crusher?

Jaw crusher is a stone crushing equipment with high production capacity, large crushing ratio, and high crushing efficiency. It is mainly used for primary and secondary crushing of hard or medium-hard stones. It can process all kinds of ores with compressive strength not higher than 320MPa to medium particle size at one time. It is often combined with cone crusher, impact crusher, sand making machine, etc. to form a complete set of sand and gravel production plant. PE jaw crusher is widely used in mining, metallurgy, chemical industry, building materials, electric power, water conservancy, transportation and other fields.

How to choose Jaw Crusher?

1.Model: Jaw crusher model depends on the size of the feeding port. Choosing suitable model is the main factor that buyers need to consider in the initial stage. The size of the model determines the production capacity range of stone crusher.

2.Feed port size: raw material size determines the size of jaw crusher feeding port. The larger the crushed material, the larger the size of jaw crusher feeding port. Large size stones need to choose a large-sized feed port to meet the production needs, and at the same time avoid troubles caused by inappropriate models.

3.Processing capacity: The processing capacity of jaw crushing machine is a key factor to purchase stone crusher. The output per hour is one of the reference factors. It determines the scale of stone production plant.

4.Motor power: The motor power is determined in combination with the overall size of stone crushers. If the equipment is large and the motor power is too small, it will definitely not be able to carry it. Choosing a reasonable electric power will help improve the production efficiency of jaw crusher.

In addition to meeting your own production needs, the appearance and configuration of stone crushing equipment, you also need to investigate and understand the production strength of stone crusher manufacturer. Henan Zhongcheng Machinery Equipment Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The hot jaw crushers manufactured by our company can be further divided into four types: PE jaw crusher, PEX fine jaw crusher, C-series jaw crusher , SKJ jaw crusher and mobile jaw crusher.

Get Price List

High Quality

Heavy-duty designed jaws crusher frame. High manganese steel castings jaw plate can be reversed to extend life and save cost. Gasket adjusting device is reliable and convenient.
Customized Design

Zhongcheng jaw crusher machine could be made in mobile type crushing plant, or stationary primary crushing machine in mining and quarry plant.
Good Performance

Deep crushing chamber is to improve feeding and output capacity. Zhongcheng jaw crusher is developed to crush hard stones in maximum productivity at the lowest operating costs. Wide adjustment range of discharging port meets different demands.

Product features

Zhongcheng jaw crusher is for sale in Indonesia, Philiphines, Malaysia, Kenya, South Afica, Peru, Chile, Australia, Uzbekistan etc. It could be customized to mobile jaw crusher too.

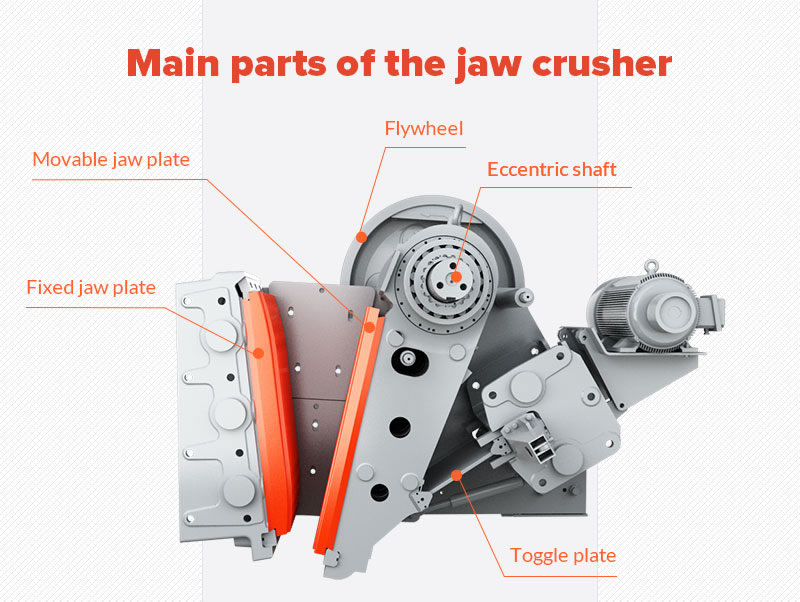

Working principle

Jaw Crusher machine uses compressive force to break hard stone material, such as granite, basalt, limestone, gold ore,boulders etc. There two vertical manganese jaw plates create a V-shaped cavity called crushing chamber, where the top of the crushing chamber is larger than the bottom.

The moving jaw moves back and forward against the fixed jaw, and material fed from the top chamber is compressed between the two jaws, breaking it into smaller pieces.As the moving jaw moves away from the fixed jaw, the crushed material is discharged from discharge opening at the bottom.

The required rock size is determined by the gap between the jaws.

Specification

PE series jaw crusher

Model	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Outlet adjusting Size(mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PE250x400	250x400	210	25-60	5-20	15	1215x1240x1210
PE400x600	400x600	350	40-90	15-60	30	1700x1750x1680
PE500x750	500x750	425	50-100	40-130	45	2150x1900x1950
PE600x900	600x900	500	60-125	90-180	55	2500x2010x2350
PE750x1060	750x1060	630	60-150	110-380	110	2630x2310x3110
PE900x1200	900x1200	750	95-165	220-450	132	3720x2850x3250
PE1000x1200	1000x1200	850	200-300	280-560	160	3820x2850x3250
PE1200x1500	1200x1500	1020	150-300	400-800	220	4590×3342×3553
PE1500x1800	1500x1800	1200	210-360	520-1100	280	5100x4700x4300

PEX series jaw crusher

Model	Feeder Opening Size(mm)	Max. Feeding Size (mm)	Outlet adjusting Size(mm)	Capacity (t/h)	Motor Power (kw)	Overall Dimension (mm)
PEX150x750	150x750	120	10-40	5-16	15	1310x1118x1145
PEX250x750	250x750	210	15-50	15-30	22	1440x1751x1515
PEX250x1000	250x1000	210	15-60	15-52	30	1730x1950x1400
PEX250x1200	250x1200	210	15-60	20-60	37	1730x2150x1400
PEX300x1300	300x1300	250	25-60	30-105	55	2000x2320x1730
