What is the trommel screen and how does it work?

Preface: In the complex system of industrial production, screening operations are like key gears in precision instruments. Although they seem ordinary, they play a vital role in the entire production process. From the initial classification of materials to deep purification, and then to laying the foundation for subsequent processing, the accuracy and efficiency of the screening process directly affect the quality and production efficiency of the final product. As a capable person in the field of screening, the trommel screen has firmly occupied an indispensable position in many core industries such as mining, building materials manufacturing, chemical synthesis, power supply, and metallurgical smelting with its unique working mode and excellent performance.

A. Working principle of trommel screen

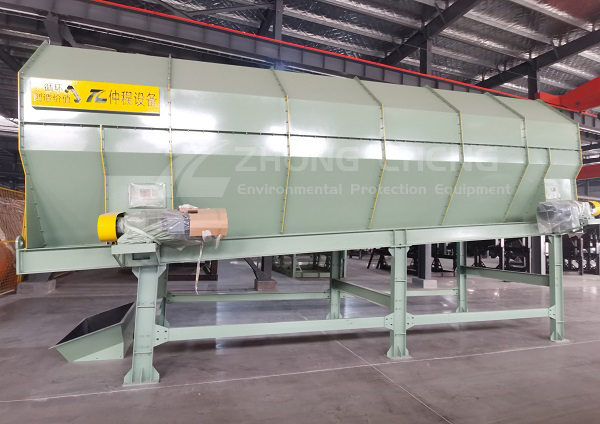

Trommel Screen

The operation of the trommel screen is based on a rigorous and ingenious mechanical transmission principle. When the motor is started, the power is quickly transmitted to the reducer, which accurately converts the high-speed rotation output by the motor into an adaptive low-speed high-torque motion, and then seamlessly connects through the coupling to transmit the power to the drum of the trommel screen. At this time, the drum begins to rotate at a uniform speed at a specific inclination setting. The materials to be screened enter the drum in an orderly manner through the feed port. Under the force of the continuous rotation of the drum, the materials seem to be given life, rolling and jumping in the drum, and moving linearly along the axial direction of the drum. Since the drum wall is provided with sieve holes of different specifications according to the fine requirements of screening, those material particles with a particle size smaller than the sieve hole size, like a smart fish passing through a fishing net, smoothly pass through the sieve hole and fall to the lower layer, becoming the screened material we need; while the materials with a particle size larger than the sieve hole continue to stay in the drum, and continue to move forward with the tireless rotation of the drum until they reach the discharge port, and are finally discharged as screened material. At this point, the entire material screening mission is successfully completed.

B. Structural composition of the trommel screen

1. Drum device: As the core hub of the trommel screen, the drum device is usually carefully made of stainless steel or carbon steel, with just the right length and diameter to adapt to screening tasks of different scales and precisions. On the wall of the drum, the layout and shape design of the sieve holes are exquisite. Common geometric forms include round, square, rectangular, etc. Each shape is designed for specific material characteristics and screening requirements to achieve the best screening effect.

2. Drive device: The drive device composed of a motor, a reducer and a coupling is like the "heart" and "nervous system" of the equipment. The motor continuously outputs surging power, and the reducer is like an experienced adjustment master, accurately converting the high-speed operation of the motor into a stable output of low-speed and high-torque, and then through the coupling, the key link, the power is transmitted to the drum without loss, ensuring that the drum always maintains stable and efficient rotation.

3. Support device: The support device consists of two parts: a support wheel and a bracket. The support wheels are usually made of wear-resistant rubber or cast steel. They are like loyal guards, steadily holding up the drum to keep it stable during the rotation process. The bracket is responsible for fixing and supporting the entire equipment. Its structural design must have sufficient strength and stability to withstand various vibrations and impacts during the operation of the equipment, and to ensure the safe operation of the equipment.

4. Feeding device: It is generally composed of a feed hopper and a connecting pipe. The feed hopper is like an efficient material collector, which can quickly receive a large amount of materials to be screened, and through clever design, the materials are evenly and orderly introduced into the trommel screen. The connecting pipe is like an unobstructed highway, ensuring that the materials are unobstructed during the transmission process and reach the screening area quickly and accurately.

5. Discharging device: The discharging device is clearly divided into an oversize discharge port and an undersize discharge port. The oversize discharge port is located at the end of the drum, which is responsible for discharging larger particles that fail to pass through the sieve holes; the undersize discharge port is cleverly set at the corresponding position below the drum, accurately collecting smaller particles that pass through the sieve holes, and realizing efficient separation and classification of materials.

C. Application fields of trommel screen

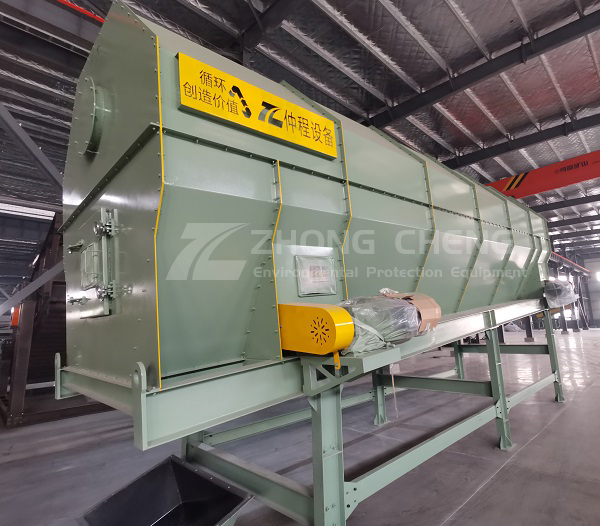

Trommel Screen

1. Mining industry: In the complex process of mining and ore processing, trommel screen plays an indispensable role. Whether it is hard iron ore, metal-rich copper ore, or precious gold ore, trommel screen can accurately grade and screen it according to the different characteristics and particle size requirements of the ore. This process not only provides high-quality raw materials for subsequent key processes such as crushing and beneficiation, but also greatly improves the processing efficiency and concentrate quality of the ore, creating significant economic benefits for mining companies.

2. Building materials industry: In the production of sand and gravel aggregates, trommel screen can be called a "magic weapon" for quality control. It can finely grade and screen sand and gravel raw materials to produce different specifications of construction sand and gravel that meet the strict standards of construction projects. At the same time, in the cement production process, trommel screen also plays an important role. By screening cement raw materials and finished cement, it effectively ensures the quality stability and performance superiority of cement, laying a solid foundation for the vigorous development of the construction industry.

3. Chemical industry: The production of chemical products requires extremely high uniformity of particle size of raw materials and finished products, and trommel screens are very useful in this field. Taking fertilizer production as an example, trommel screens can accurately screen fertilizer particles, remove unqualified large particles and fine powders, ensure that each fertilizer has uniform particle size and stable quality, and provide reliable guarantee for agricultural production.

4. Power industry: In the key link of thermal power generation - coal combustion process, the role of trommel screens cannot be underestimated. By accurately screening coal and reasonably distributing coal of different particle sizes, the combustion efficiency of boilers can be significantly improved, coal waste and pollutant emissions can be reduced, and efficient and environmentally friendly electricity production can be achieved, providing a stable and clean energy supply for society.

5. Metallurgical industry: In metallurgical processes such as steel smelting, the particle size of raw materials and intermediate products is strictly controlled. The trommel screen can accurately screen various materials such as ore, coke, slag, etc., provide raw materials and auxiliary materials with precise particle size matching for metallurgical production, ensure the smooth progress of the metallurgical production process, and improve the quality and production efficiency of metal products.

D. Advantages and characteristics of the trommel screen

1. High screening efficiency: The unique working mode of the trommel screen allows the material to fully contact the screen in the drum, and the rolling and jumping process greatly increases the contact area and time. According to actual data comparison, compared with traditional screening equipment, the screening efficiency of the trommel screen can be greatly improved by 20% - 30%, which means that it can process more materials in the same time, providing strong support for enterprises to improve production efficiency.

2. Strong adaptability: Whether facing wet and sticky materials or dry and loose materials, the trommel screen can cope with it calmly and show excellent screening capabilities. At the same time, by flexibly adjusting key parameters such as screen hole size, drum speed and inclination, it can easily meet the screening operations with different particle size requirements, truly achieving "one machine for multiple uses" and adapting to diversified industrial production needs.

3. Stable and reliable operation: Thanks to its scientific and reasonable structural design, the matching accuracy between the various components of the trommel screen is extremely high, and the stable power provided by the drive device makes the equipment always maintain a stable state during operation, and the failure rate is extremely low. In addition, the maintenance of the equipment is relatively simple, which greatly reduces the equipment use cost and maintenance workload of the enterprise, and provides a reliable guarantee for the continuous production of the enterprise.

4. Large processing capacity: The trommel screen is usually large in size and can accommodate a large amount of materials for screening operations at the same time. In large-scale industrial production scenarios, its powerful processing capacity can meet the screening needs of large-scale materials, effectively improve production efficiency, reduce production costs, and become an ideal choice for large-scale production of enterprises.

Good sealing: The entire screening process is completed in a closed drum. This design cleverly avoids the flying of dust and the leakage of materials, greatly improves the working environment, and reduces pollution to the environment. With increasingly stringent environmental protection requirements today, this advantage of the trommel screen makes it more in line with the concept of green production and has become the preferred choice of many companies.

E. Key points for operation and maintenance of trommel screen

1. Key points for operation: Before starting the trommel screen, the operator must conduct a comprehensive and detailed inspection to ensure that all parts of the equipment are firmly connected, the lubrication system operates normally, and the screen is not damaged or blocked. When starting, the principle of starting with no load should be followed first. After the equipment runs smoothly, materials should be gradually added to avoid damage to the equipment due to excessive instantaneous load. During the operation of the equipment, the operator should always pay attention to the operating status of the equipment, closely monitor key parameters such as motor current, drum speed, and material screening conditions, and immediately stop the equipment for investigation and treatment once an abnormality is found to ensure the safe operation of the equipment. When shutting down, the feeding should be stopped first, and the equipment should be stopped after all the materials in the drum are discharged to prevent the residual materials from damaging the equipment.

2. Key points for maintenance: Regular comprehensive maintenance of the equipment is the key to ensuring its long-term stable operation. Maintenance work includes lubrication and tightening of various components, timely inspection of the wear of the screen, and timely replacement of the screen with severe wear to ensure the screening effect. At the same time, it is necessary to regularly clean the dust and debris inside and outside the equipment, keep the equipment clean and hygienic, and avoid affecting the performance of the equipment due to dust accumulation. For the motor and reducer of the drive device, it is necessary to strictly inspect and maintain them according to the prescribed time to ensure that they are always in the best operating state.

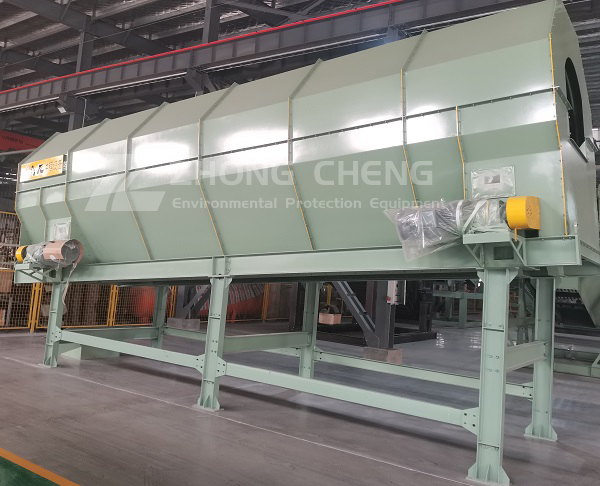

Trommel Screen

F. Development trend of trommel screen

With the rapid development of industrial technology and increasingly stringent environmental protection requirements, the trommel screen is also constantly seeking innovation and breakthroughs, and striding towards intelligence, large-scale, high-efficiency energy saving and environmental protection. In terms of intelligence, by introducing advanced sensors and intelligent control systems, the trommel screen will realize automatic control, fault diagnosis and remote monitoring of the equipment. Operators only need to use computers or mobile phone terminals to grasp the operating status of the equipment in real time, and realize accurate operation and efficient management. Large-scale is to meet the needs of large-scale industrial production, by increasing the size and processing capacity of the equipment, further improve production efficiency and reduce unit production costs. In the field of high efficiency and energy saving, researchers are committed to reducing the energy consumption of equipment and improving energy utilization efficiency by optimizing structural design and selecting new materials. In terms of environmental protection, the trommel screen will further improve the sealing and dust handling capabilities, reduce pollution to the environment, and contribute to sustainable development.

PS: As an indispensable screening equipment in industrial production, trommel screen plays an irreplaceable and important role in various industries with its unique working principle, excellent performance and wide application fields. With the continuous advancement of technology, trommel screen will continue to improve and innovate, providing stronger support for promoting the high-quality development of various industries.
