Cone Crusher Detailed Introduction

Preface: In modern industrial production, the crushing of solid materials such as ore and rock is a vital basic operation. As an efficient crushing equipment, cone crusher is widely used in many fields such as mining, metallurgy, construction, and highways. With its unique working principle and structural design, it can crush large pieces of material into various required particle sizes, providing high-quality raw materials for subsequent processing procedures.

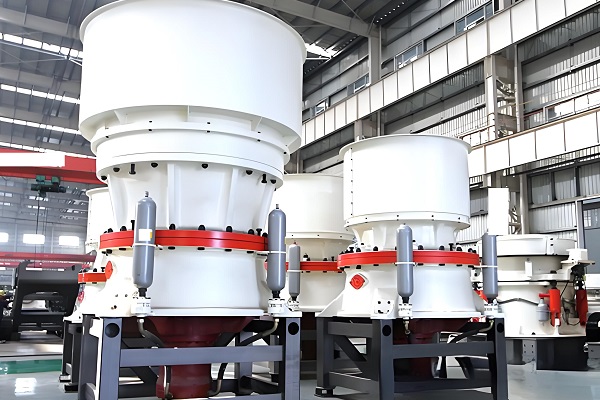

Cone Crusher

1. Working principle

When the cone crusher is working, the motor drives the eccentric sleeve to rotate through the pulley and the V-belt, and the moving cone performs a swinging motion under the action of the eccentric sleeve. In the section where the moving cone is close to the fixed cone, the material is crushed by extrusion, bending and impact; when the moving cone leaves this section, the crushed material is discharged from the bottom of the crushing chamber under the action of gravity. This cycle repeats to achieve continuous crushing of the material. This unique working method enables the material to be crushed multiple times during the crushing process of the cone crusher, thereby improving the crushing efficiency and product quality.

2. Structural composition

Crushing chamber: It consists of a fixed cone liner and a moving cone liner, which is the main area for material crushing. Liners are usually made of high manganese steel or other wear-resistant materials to increase their service life.

Transmission system: includes components such as motors, pulleys, V-belts and eccentric sleeves. The motor provides power, which is transmitted to the eccentric sleeve through the pulley and V-belt, causing the moving cone to produce a swiveling motion.

Support device: mainly includes spindle, frame and spherical bearing. The spindle is the supporting component of the moving cone, which transmits the force of the moving cone to the frame; the frame is the foundation of the crusher, bearing the weight and crushing force of the entire equipment; the spherical bearing is installed between the spindle and the frame to support and position the moving cone.

Adjustment device: used to adjust the size of the discharge port of the crusher to control the particle size of the product. Common adjustment methods include hydraulic adjustment and mechanical adjustment. The hydraulic adjustment device is easy to operate, quick to adjust, and can achieve remote control; the mechanical adjustment device is simple in structure and low in cost, but the adjustment process is relatively cumbersome.

Lubrication system: provides lubrication for each moving part of the crusher, reduces wear and extends the service life of the equipment. The lubrication system usually consists of an oil pump, an oil tank, a filter and an oil pipe.

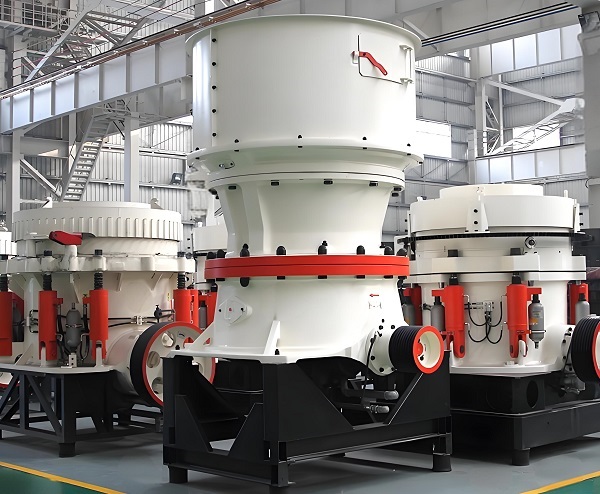

Cone Crusher

3. Features and advantages

Large crushing ratio: The cone crusher can crush large pieces of material into smaller products at one time, and the crushing ratio can reach 30-40, which has a higher crushing efficiency than other crushers.

Uniform product size: Since the material can be crushed multiple times in the crushing chamber and the crushing process is relatively smooth, the product size is uniform and meets the production requirements.

High working efficiency: The cone crusher has strong continuous working capacity and high production efficiency, which can meet the needs of large-scale production.

Strong reliability: The equipment has a compact structure, the connection between the components is firm, and the optimized design of the moving cone and the fixed cone enables it to operate stably under large crushing forces, with high reliability.

High degree of automation: Modern cone crushers are equipped with advanced automatic control systems, which can realize functions such as remote monitoring, fault diagnosis and automatic protection, reduce the labor intensity of operators, and improve the operating safety of equipment.

4. Application fields

Mining industry: Cone crusher is an indispensable equipment in mining, used to crush various ores, such as iron ore, copper ore, gold ore, etc. By crushing the raw ore into a suitable particle size, it provides raw materials for subsequent ore dressing operations.

Metallurgical industry: In the metallurgical production process of steel, non-ferrous metals, etc., raw materials need to be crushed and pre-treated. Cone crusher can effectively crush various metal ores and waste slag, providing high-quality raw materials for metallurgical production.

Construction industry: In the production of building materials, such as cement, sand and gravel, cone crusher is used to crush raw materials such as limestone, granite, basalt, etc., to produce aggregates that meet construction standards.

Highway construction: Highway pavement requires a large amount of crushed stone materials. The crushed stone produced by cone crusher has uniform particle size and regular shape, which can improve the quality and durability of the road surface.

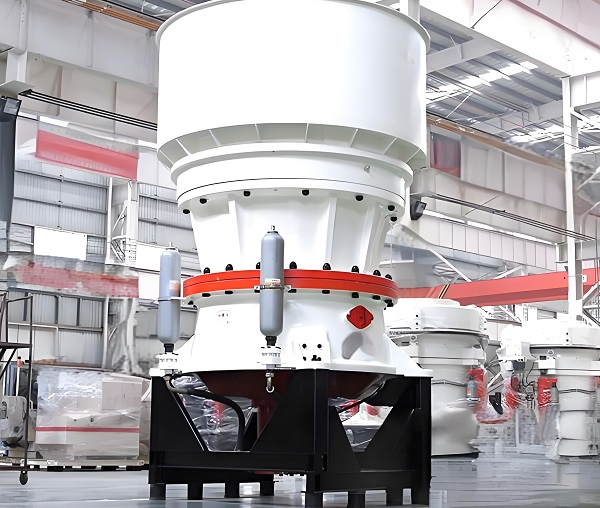

Cone Crusher

5. Development trend

Intelligence: With the continuous development of technologies such as artificial intelligence and the Internet of Things, cone crushers will develop in the direction of intelligence. In the future, cone crushers will have more advanced automatic control systems, which can realize functions such as self-diagnosis, self-adjustment and remote monitoring, and further improve the operating efficiency and reliability of the equipment.

Energy saving and environmental protection: Under the background of global advocacy of energy saving and environmental protection, cone crushers will continue to optimize their design, improve energy utilization, reduce energy consumption and dust emissions. At the same time, new materials and manufacturing processes are adopted to improve the wear resistance and service life of equipment and reduce resource waste.

Large-scale: In order to meet the needs of large-scale production, cone crushers will develop in the direction of large-scale. Large cone crushers have the advantages of large production capacity and small footprint, which can improve production efficiency and reduce production costs.

PS: As an important crushing equipment, cone crusher plays an irreplaceable role in industrial production. By understanding its working principle, structural composition, characteristics and advantages, application fields, maintenance and development trends, we can better select and use cone crushers and provide more efficient and high-quality services for industrial production. With the continuous advancement of technology, cone crushers will show a broader application prospect in future industrial development.
