Challenges and solutions in the maintenance of cone crushers

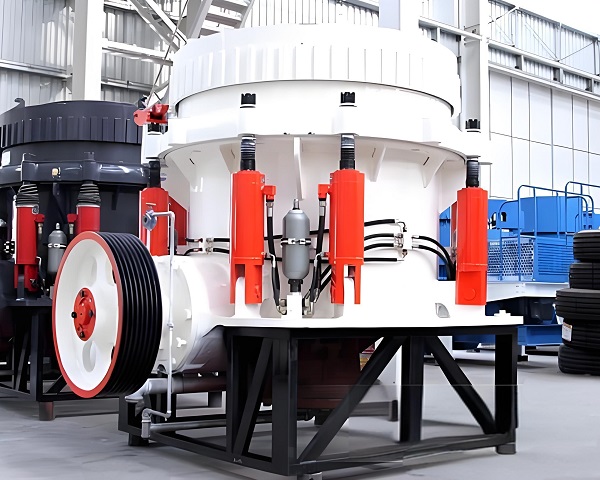

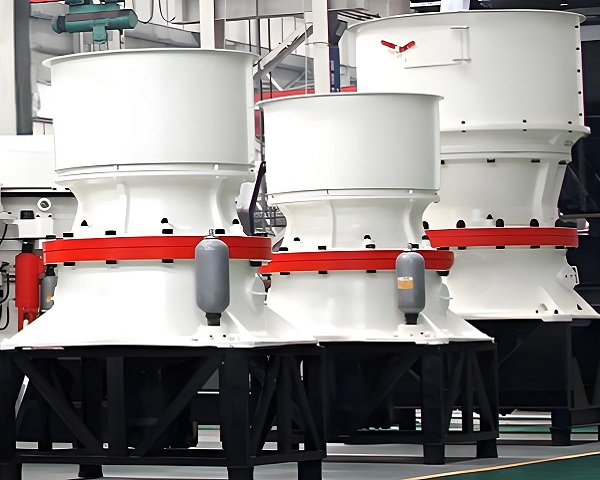

Cone crushers, as core crushing equipment in industries such as mining and building materials, are widely used in medium and fine crushing operations due to their advantages of large crushing ratio, high efficiency, and uniform product particle size. However, due to their long-term operation under harsh conditions of high load, strong impact, and high dust, component wear and frequent failures have become common pain points in the industry, posing numerous challenges to maintenance. This article will delve into the core maintenance difficulties of cone crushers and propose targeted coping strategies based on actual application scenarios to provide technical support for stable equipment operation.

Core Maintenance Difficulties of Cone Crusher

1. Severe Wear and Complex Replacement of Key Components

The core components of a cone crusher, such as the crushing cone, liners, eccentric bushings, and spherical bearings, directly bear the impact and compression of materials, resulting in extremely rapid wear. Among them, the liner, as the component in direct contact with the material, typically has a service life of only 3-6 months, while the mating surfaces of the crushing cone and eccentric bushing are constantly under high-speed operation, making them prone to problems such as seizing and scoring. More importantly, these components are mostly heavy-duty precision parts, weighing several tons. Replacement requires large lifting equipment, and the disassembly and installation processes demand strict alignment precision; otherwise, it can lead to uneven loads, excessive vibration, and further accelerated wear. Furthermore, the procurement cycle for core components of some imported equipment is long and costly, and damage can easily cause prolonged production line downtime.

2. Difficulty in Controlling Equipment Gap Adjustment Precision The discharge port gap and eccentricity of a cone crusher directly affect crushing efficiency and product particle size, and gap adjustment is a technical challenge in maintenance. Traditional adjustment methods rely heavily on manual experience, achieved by adding or removing shims or rotating adjusting rings. This is not only labor-intensive but also difficult to precisely control the gap value. If the gap is too large, it will lead to excessive product particle size and reduced crushing efficiency; if the gap is too small, it can easily cause material blockage, motor overload, and even serious malfunctions such as liner jamming and bushing burnout. At the same time, during equipment operation, the gap will constantly change due to component wear and foundation settlement, requiring frequent dynamic adjustments, further increasing the difficulty of maintenance.

3. Lubrication System Faults Are Highly Concealed The lubrication system is the "lifeline" of a cone crusher, responsible for providing lubrication and cooling to high-speed rotating components. However, faults in this system are highly concealed. Problems such as lubricating oil leaks, filter blockages, and insufficient oil supply pressure are difficult to detect visually in the early stages, and by the time they are discovered, severe wear and tear on parts has often occurred. Furthermore, the dusty environment in mines easily mixes with the lubricating oil, accelerating oil deterioration and component wear. Simultaneously, the continuous operation of the equipment over a long period leads to increased oil temperature, which also reduces the lubricating performance of the oil, increasing maintenance risks.

4. High Maintenance Technical Requirements and Insufficient Personnel Cone crushers have a complex structure, integrating technologies from multiple fields such as mechanics, hydraulics, and electrical systems. This places high demands on the professional skills of maintenance personnel. Maintenance personnel not only need to be familiar with the structural principles of the equipment but also need to master skills in precision measurement, hydraulic system debugging, and electrical fault diagnosis. However, there is currently a shortage of professional maintenance personnel in the industry, and some maintenance personnel have limited technical skills. When faced with complex faults, they struggle to quickly pinpoint the root cause, leading to mis-repairs and missed repairs. This not only fails to completely resolve the fault but may also cause secondary damage, increasing maintenance costs and downtime.

Strategies for Addressing the Difficulties in Cone Crusher Maintenance

1. Optimize Parts Management and Extend Service Life

To address the issues of rapid parts wear and complex replacement, firstly, high-quality wear-resistant parts should be selected, such as liners and crushing cones made of wear-resistant materials like high-manganese steel and high-chromium cast iron, to improve the wear resistance of parts. Secondly, establish a full life-cycle management system for parts, regularly inspecting core components and using technologies such as ultrasonic flaw detection and vibration monitoring to predict the wear status of parts in advance and avoid sudden failures. Simultaneously, maintain a reasonable stockpile of key parts, especially core parts for imported equipment, to shorten fault repair time. Furthermore, optimize equipment operating parameters, control feed particle size and hardness, avoid overload operation, and reduce impact wear on parts.

2. Adopt Precision Adjustment Technology to Improve Gap Control Accuracy

To solve the gap adjustment problem, traditional manual adjustment methods should be abandoned, and intelligent adjustment technology should be introduced. For example, a hydraulic clearance adjustment system can be used. A hydraulic cylinder drives the adjusting ring, and a displacement sensor monitors the clearance value in real time, achieving precise automatic clearance adjustment with an error controllable within ±0.1mm. Simultaneously, a dynamic clearance monitoring mechanism is established. Utilizing the equipment operation data platform, clearance change data is collected in real time, and parameters are automatically adjusted according to material characteristics and product requirements to ensure the equipment is always in optimal operating condition. Furthermore, the adjustment mechanism is regularly maintained, including cleaning impurities and checking the hydraulic system's sealing to ensure its flexibility and reliability.

3. Strengthen Lubrication System Maintenance to Prevent Hidden Faults

Given the often hidden nature of lubrication system faults, a comprehensive lubrication system maintenance plan should be established. First, select suitable high-quality lubricating oil and change it regularly according to ambient temperature and operating conditions, generally every 3-6 months, while simultaneously cleaning the oil tank and filter. Second, install online monitoring devices to monitor the lubricating oil temperature, pressure, level, and cleanliness in real time. If any abnormal parameters are detected, an alarm signal is immediately issued, prompting timely troubleshooting. In addition, strengthen equipment sealing and protection by installing dustproof sealing devices at the feed inlet and inspection doors to prevent dust from mixing into the lubricating oil. Simultaneously, optimize the cooling system, increase the heat dissipation area of the cooler, and control the oil temperature within a reasonable range (generally not exceeding 60℃) to ensure the lubricating performance of the lubricating oil.

4. Strengthen maintenance talent training and improve professional skills. To address the issues of high maintenance technical requirements and insufficient personnel reserves, enterprises should strengthen the construction of their maintenance talent pool. On the one hand, cooperate with vocational schools and equipment manufacturers to conduct targeted training, systematically teaching equipment structure principles, maintenance techniques, and troubleshooting methods to improve the professional foundation of maintenance personnel. On the other hand, regularly organize technical exchange activities, inviting industry experts and senior technicians to provide on-site guidance, share maintenance experience and cases, and improve the ability of maintenance personnel to solve complex faults. Furthermore, establish and improve a sound performance evaluation and incentive mechanism for maintenance personnel, linking maintenance quality and fault handling efficiency to compensation to stimulate their learning enthusiasm and sense of responsibility.

5. Promote preventive maintenance to reduce the failure rate. Preventive maintenance is key to reducing cone crusher maintenance costs and minimizing downtime. Enterprises should establish comprehensive preventative maintenance plans, developing daily, weekly, and monthly maintenance schedules based on equipment operation manuals and actual operating conditions. These schedules include checking bolt tightness, cleaning internal material buildup, and testing hydraulic system pressure. Simultaneously, leveraging IoT and big data technologies, an intelligent equipment operation and maintenance platform should be built to collect real-time equipment operating data. Data analysis can then predict potential faults, allowing for proactive maintenance and preventing problems from escalating. Furthermore, regular comprehensive equipment overhauls, including an annual disassembly and overhaul, are crucial to inspect component wear, replace aging parts, and calibrate equipment precision, ensuring long-term stable operation.

The maintenance challenges of cone crushers lie primarily in component wear, clearance adjustment, lubrication system malfunctions, and a shortage of skilled maintenance personnel. These issues directly impact equipment operating efficiency and lifespan, increasing production costs. Optimizing component management, adopting precision adjustment techniques, strengthening lubrication system maintenance, enhancing talent development, and implementing preventative maintenance strategies can effectively address these challenges and improve equipment reliability and stability. In the future, with the widespread application of intelligent and digital technologies in mining equipment, the maintenance mode of cone crushers will develop towards intelligence and predictability, further reducing maintenance difficulty and providing strong support for the high-quality development of the industry.
