What is a single cylinder cone crusher and its advantages and features

The single-cylinder cone crusher is a high-efficiency crushing equipment that combines advanced design concepts. Below, Zhongcheng Machinery Editor introduces what a single-cylinder cone crusher is, and its characteristics and advantages:

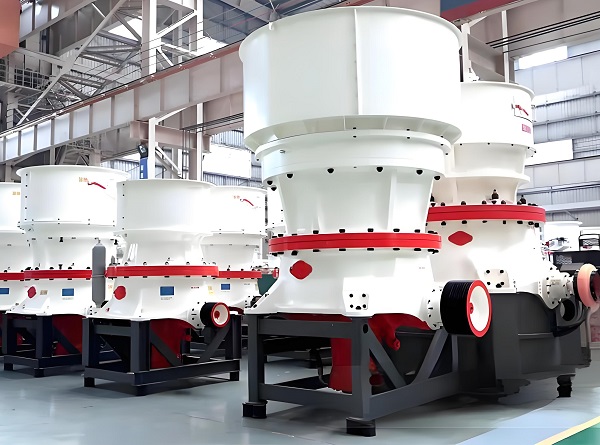

Single Cylinder Cone Crusher

1. What is a single-cylinder cone crusher

The single-cylinder cone crusher is a machine that achieves crushing operations by lifting and lowering the moving cone with a single hydraulic cylinder. It is widely used in metal and non-metallic minerals, cement, sand and stone, metallurgy, construction, highways, chemicals and silicates. It is suitable for crushing various ores and rocks with medium and above medium hardness, especially for hard rock crushing and high-hardness and highly abrasive ores and rocks.

2. Characteristics of single-cylinder cone crusher

a. Compact structure: The single-cylinder cone crusher adopts a single-cylinder mechanical structure, without many oil pipes and external adjustment mechanisms. It has a simple and smooth appearance, small size and light weight.

b. Advanced design: The bottom hydraulic cylinder of the single-cylinder cone crusher is connected to an accumulator, and has a bidirectional oil pump. The up and down movement of the main shaft can be achieved by controlling the oil pump forward and reverse by the control button.

c. Automatic control: The intelligent automatic control system is adopted to keep the crusher in the best working state at all times, and realize the automatic compensation function of the wear of the inner and outer cone linings.

d. Adjustable discharge port: The bottom hydraulic cylinder can adjust the upper and lower positions of the main shaft, thereby adjusting the distance between the moving cone and the outer cone lining to adjust the size of the discharge port.

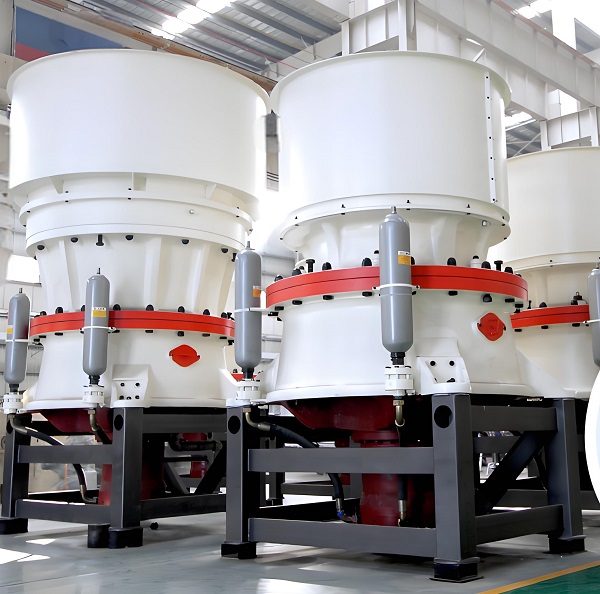

Single Cylinder Cone Crusher

3. Advantages of single-cylinder cone crusher

a. High efficiency: The main shaft of the single-cylinder cone crusher is supported at both ends, which can withstand greater crushing force and greater stroke. In addition, the special crushing cavity shape adapted to the lamination principle has high crushing efficiency and large production capacity. Compared with the old spring cone crusher, its output can be increased by 35%~60%.

b. High-quality finished products: The unique crushing cavity shape and lamination crushing principle are adopted to significantly increase the proportion of cubes in the finished products, reduce needle-like stones, and make the particle size more uniform.

c. Easy operation: The structure is optimized, and the adjustment of the discharge port is integrated with the overload protection system design, which simplifies the internal structure, enhances the reliability of the equipment quality, and is very simple and convenient to operate and maintain. At the same time, a mechanized fully automatic control system is designed, which can remotely operate the equipment through a computer and monitor the operating status in real time.

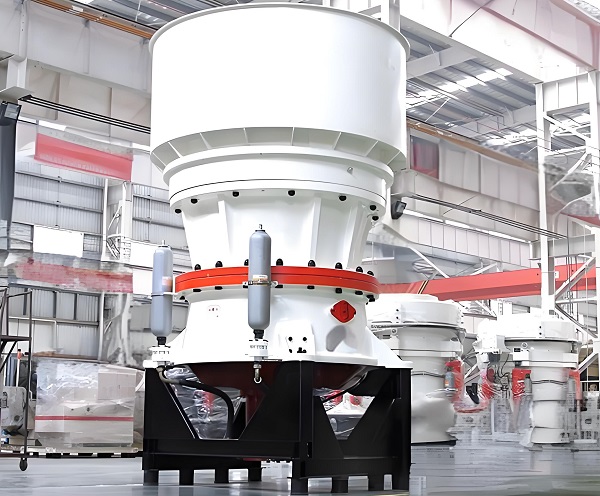

Single Cylinder Cone Crusher

d. Low operating cost: Medium and fine crushing of various cavity shapes can be achieved by simply replacing the fixed cone, which can meet the needs of various particle sizes. At the same time, the reasonable motion trajectory design reduces unit energy consumption. In addition, a dust removal and silencer is installed to meet the green production standards, saving electricity costs, maintenance costs, additional environmental protection costs, etc. for the enterprise.

e Easy maintenance: The cone crusher has a simple and compact structure, stable performance, and is not prone to failure. Only a few bolts need to be removed to lift the upper frame. All maintenance parts are few and can be maintained from the upper part of the body. There are few spare parts and low maintenance costs.

PS: Single-cylinder cone crusher has a wide range of application prospects in the crushing industry with its advantages of high efficiency, high-quality finished products, simple operation, low operating costs and convenient maintenance.
