Features and advantages of hydraulic cone crushers

In mining, aggregate production, and fine ore processing, crushing hard and high-hardness materials has always been a major challenge. Traditional spring cone crushers suffer from inconvenient adjustment, weak overload protection, rapid wear of vulnerable parts, and cumbersome maintenance, making them unsuitable for modern, large-scale, efficient, and intelligent crushing demands. Hydraulic cone crushers, as a new generation of core equipment for medium and fine crushing, integrate hydraulic technology, layered crushing principles, and intelligent control technology. They specifically address the pain points of traditional crushing equipment, boasting excellent structure, stable operation, high crushing efficiency, and convenient maintenance. They demonstrate significant advantages in capacity improvement, cost control, finished product quality, and safety assurance. Widely applicable to crushing various medium-hard and hard rocks such as granite, basalt, limestone, iron ore, and copper ore, they are core equipment for sand and gravel plants and mining enterprises to improve quality and efficiency. This article (approximately 1600 words) provides a detailed analysis of their core features and application advantages.

A. Core Features of Hydraulic Cone Crusher

1. Integrated Hydraulic System: Safety Protection and Adjustment in One

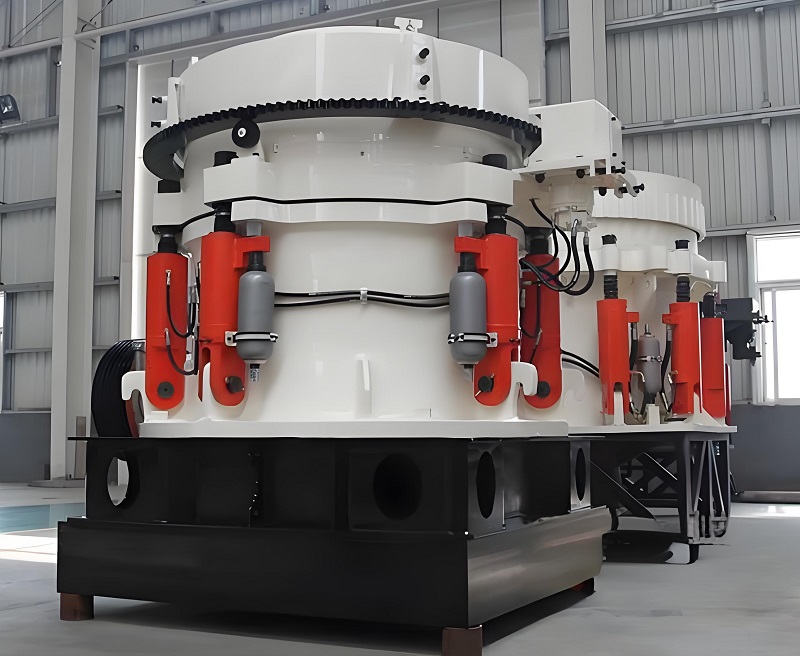

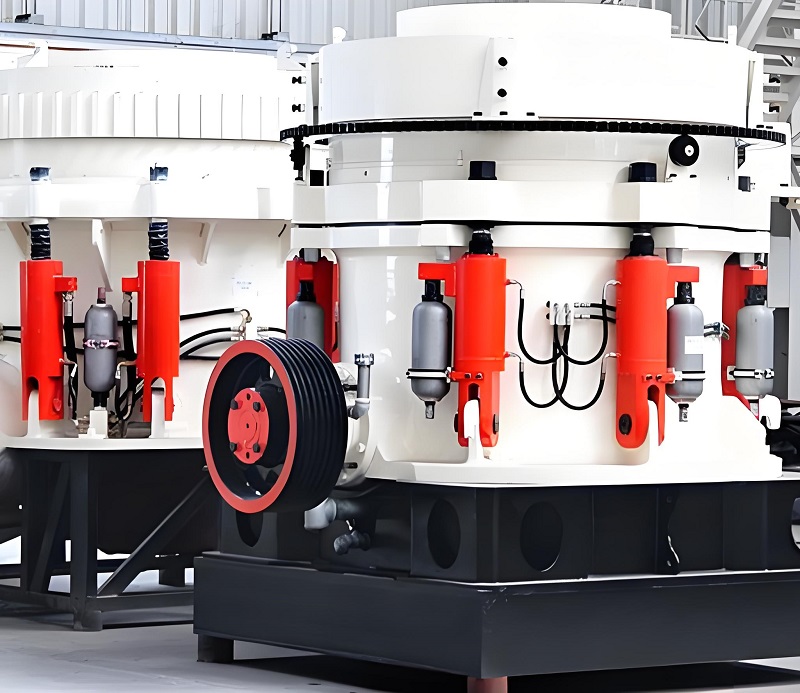

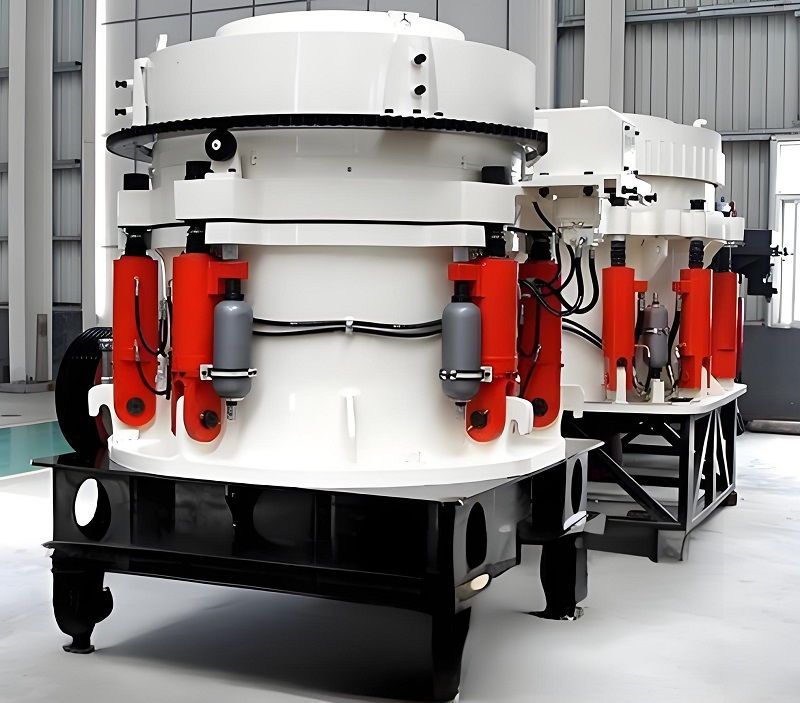

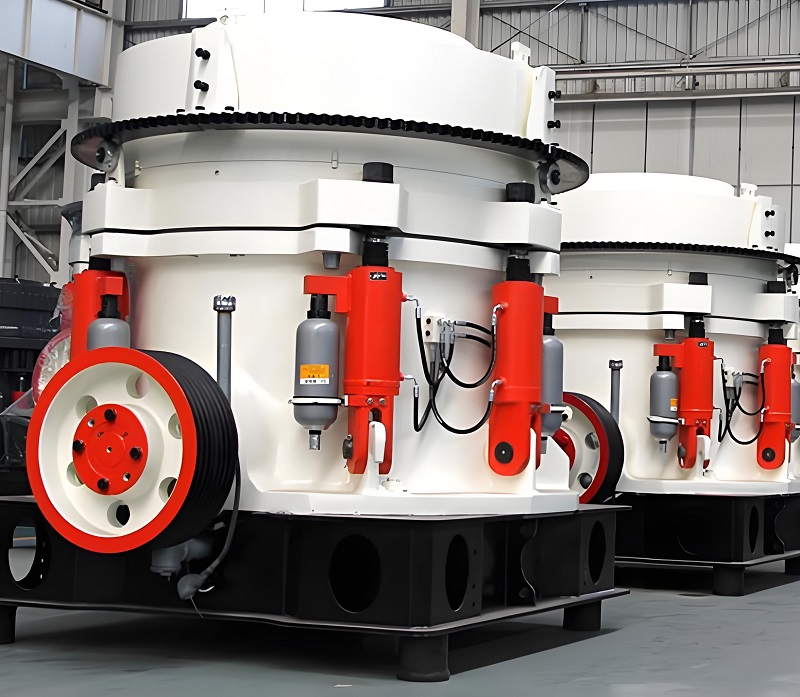

The core feature of the hydraulic cone crusher is its sophisticated hydraulic control system, integrating multiple hydraulic mechanisms such as safety cylinders, locking cylinders, and clearing cylinders. This integrates three major functions: safety protection, discharge adjustment, and fault clearing, completely overturning the mechanical adjustment mode of traditional spring cone crushers. The equipment features fully automatic overload protection. When iron blocks, uncrushable hard objects, or jamming occur in the crushing chamber, the hydraulic system responds quickly, automatically lifting the moving cone to release the foreign objects without requiring manual discharge. After the foreign objects are discharged, the equipment automatically resets. No parts disassembly is required throughout the process, significantly reducing the risk of equipment damage. Simultaneously, relying on the hydraulic motor, precise and continuous adjustment of the discharge port is achieved without stopping the machine. This adapts to different particle size crushing requirements while ensuring continuous production. The adjustment accuracy is high, operation is convenient, and reliability far exceeds traditional mechanical adjustment methods.

2. Advanced inter-particle crushing technology produces high-quality, uniformly shaped finished products.

This equipment abandons the traditional single-particle impact crushing mode, employing the inter-particle inter-particle crushing principle. Combined with a specially optimized crushing chamber and matching high speed and large eccentricity parameters, the materials are squeezed, ground, and collided within the crushing chamber, achieving selective crushing and optimizing the quality of the finished aggregate from the source. The crushed material has a high cubic content, an extremely low proportion of needle-like and flaky particles, and sufficient fine material content, fully meeting the particle shape requirements of high-grade construction, highway, and railway projects for sand and gravel aggregates. Simultaneously, the equipment can flexibly switch between various chamber types such as coarse crushing, medium crushing, and fine crushing according to material characteristics and production needs, adapting to diverse crushing scenarios. It boasts a large crushing ratio and high crushing efficiency, with a material throughput per unit time far exceeding that of traditional crushing equipment of the same specifications.

3. Robust and Durable Structure with Outstanding Impact Resistance: The hydraulic cone crusher features a compact and rational overall structural design. Core components are made of high-quality materials. The frame is constructed from high-strength integral cast steel, and the main shaft is precision-forged from alloy steel, resulting in strong load-bearing capacity and excellent impact resistance. It can withstand long-term high-hardness, high-load crushing operations with maximum operational stability. Key wear parts such as the crushing wall and grinding chamber are made of wear-resistant alloy materials such as high-manganese steel, offering superior wear resistance and effectively extending service life. Furthermore, the optimized liner fixing and assembly structure eliminates the need for glue or fillers, facilitating easy disassembly and assembly with a high degree of fit, further enhancing equipment durability. In addition, the equipment uses tin bronze bushing sliding bearings, suitable for harsh operating environments with high dust and strong impacts. Compared to traditional rolling bearings, these bearings have a stronger load capacity and a lower failure rate.

4. Comprehensive Sealing and Lubrication System for a Clean and Efficient Operating Environment

Addressing the issues of high dust levels and easy intrusion of impurities into the equipment during crushing operations, the hydraulic cone crusher employs a dual sealing structure combining a labyrinth seal and a spherical floating seal. This superior sealing performance completely prevents dust and impurities from entering the machine body, avoiding lubricant contamination, bearing wear, and other malfunctions. It fundamentally solves the defects of traditional equipment, such as water-oil mixing and seal failure. Simultaneously, a thin oil lubrication system enables fully automatic lubrication of bearings and transmission components, providing excellent heat dissipation and thorough lubrication, ensuring the equipment operates continuously for extended periods without overheating and reducing component wear. The entire sealing and lubrication system requires no frequent manual maintenance, operating automatically, ensuring a clean working environment, reducing maintenance workload, and improving equipment operating efficiency.

5. High Degree of Intelligence and Convenient, Worry-Free Operation and Control

Modern hydraulic cone crushers are generally equipped with a PLC intelligent central control system, coupled with a touch-screen operation panel, achieving fully automated control of the entire crushing operation process. Operators can monitor key parameters such as equipment operating speed, oil temperature, oil pressure, and crushing load in real time through the central control system. Abnormal situations trigger automatic alarms, facilitating timely troubleshooting. Remote control is also supported, allowing for remote adjustment of the discharge port size and equipment start/stop, eliminating the need for close monitoring and reducing labor intensity and on-site safety risks. Some high-end models can also be linked to the entire crushing production line, achieving coordinated operation across the entire chain of feeding, crushing, and conveying, further enhancing the level of intelligent and automated production.

B. Core Application Advantages of Hydraulic Cone Crusher

1. Doubled Crushing Efficiency and Significantly Improved Production Capacity: The hydraulic cone crusher combines high swing frequency, large eccentricity, and layered crushing technology, resulting in strong crushing force, a large crushing ratio, and excellent material throughput. At the same power, its production capacity is 35%-60% higher than that of a traditional spring cone crusher, with particularly outstanding advantages in fine crushing efficiency. The equipment enables continuous operation with full feeding, eliminating idling and material stagnation. It is suitable for the mass production needs of large-scale mines and sand and gravel plants, effectively shortening the production cycle, increasing the overall capacity of the production line, and helping enterprises quickly realize production benefits. It perfectly meets the core demands of large-scale production in the current sand and gravel and mining industries.

2. Low wear on vulnerable parts, controllable full-cycle maintenance costs. Thanks to the layered crushing principle and the application of wear-resistant alloy materials, direct impact wear on vulnerable parts is significantly reduced. The service life of core vulnerable parts such as the crushing wall and jaw wall is extended by more than 30%, significantly reducing the frequency of replacement. At the same time, the hydraulic clearing and automatic reset functions reduce the probability of equipment stalling and damage from excessive iron, avoiding the high costs of major equipment overhauls and replacement of core components. In addition, the automated operation of the sealing and lubrication system reduces manual maintenance costs and parts wear. Over the long term, equipment maintenance costs, parts costs, and labor costs are significantly reduced. The total life-cycle maintenance cost is far lower than that of traditional crushing equipment, making it extremely cost-effective.

3. Superior Finished Product Quality, Expanding Market Applications: The particle shape and quality of finished aggregates directly determine the market value of sand, gravel, and ore products. Hydraulic cone crushers produce finished aggregates with regular particle shape, high cubic content, reasonable gradation, and extremely low needle-like and flaky particle content, fully meeting the material standards of high-end projects such as high-speed rail, highways, high-rise buildings, and water conservancy projects. Compared to materials produced by traditional crushing equipment, these aggregates are more competitive in the market and command higher prices. Simultaneously, the equipment can precisely adjust the output particle size, producing both coarse and fine aggregates, adapting to the production needs of various specifications of materials. This helps enterprises expand their product range, seize the high-end building materials and ore processing market, and increase profit margins.

4. Safe and Stable Operation, Significantly Reduced Downtime Losses: A comprehensive hydraulic overload protection system and intelligent monitoring system provide a solid safety barrier for all-weather operation. Functions such as automatic discharge of overloaded material, automatic alarm shutdown for abnormalities, and automatic lubrication and sealing minimize the risks of equipment failure and production stoppages. Compared to the drawbacks of traditional equipment, such as frequent downtime for maintenance and manual material handling, hydraulic cone crushers can achieve continuous and stable operation 24 hours a day. This significantly reduces downtime, greatly improves production line uptime, avoids capacity losses and project delays caused by downtime, and ensures continuous production, making them particularly suitable for continuous production scenarios such as mines and sand and gravel plants.

5. High Adaptability and Wide Coverage of Operating Scenarios

Hydraulic cone crushers are highly adaptable to various materials. Whether it's medium-hard rocks like limestone or high-hardness materials such as granite, basalt, and various metal ores, they can all be crushed efficiently without material compatibility barriers. The equipment can be flexibly adapted to fixed crushing production lines and mobile crushing stations. It can be used for open-pit mining crushing, as well as for construction waste resource recovery and sand and gravel aggregate processing plants. With different chamber shapes and parameter adjustments, it can meet the crushing needs of the entire process from coarse to medium to fine crushing. Its strong versatility allows one machine to adapt to multiple operating scenarios, reducing equipment procurement costs and improving equipment utilization.

Hydraulic cone crushers, with their integrated hydraulic system, advanced lamination process, robust and durable structure, and intelligent control mode, demonstrate overwhelming advantages in five dimensions: capacity, cost, quality, safety, and adaptability, completely solving the operational problems of traditional crushing equipment. As the mining and gravel industry transforms towards high efficiency, intelligence, and green practices, hydraulic cone crushers have become the preferred equipment for crushing medium-hard and hard rock. They not only help companies reduce costs and increase efficiency, enhance product competitiveness, but also promote the upgrading of crushing production processes, providing solid equipment support for the high-quality development of the industry.
